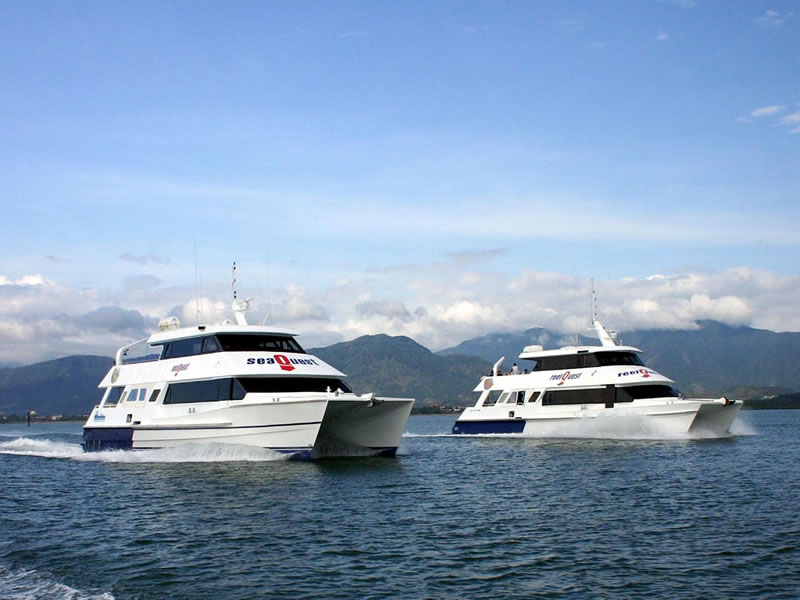

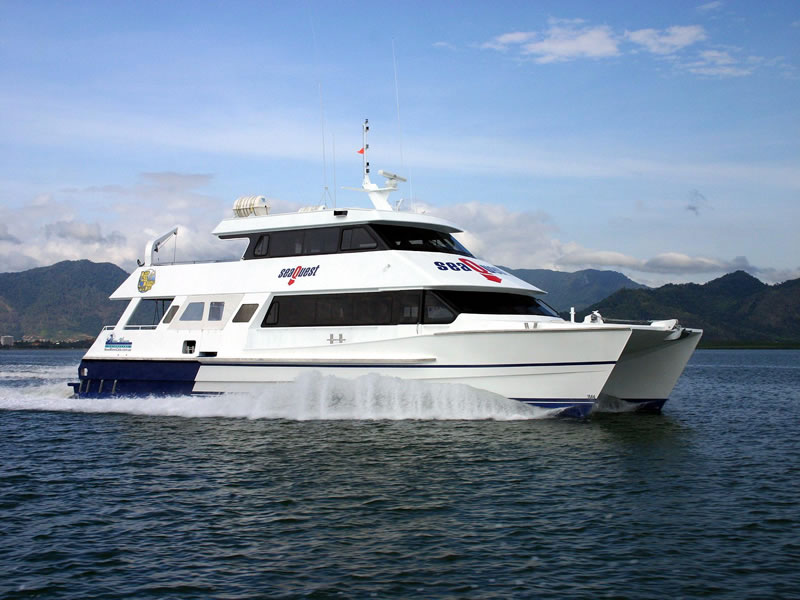

"SeaQuest" is yet another high speed aluminium catamaran design from Paul Birgan and his team which incorporating fixed foils attached to the mini keels obtain extra performance. This 23.5 Meter vessel has a top speed of 31 knots and is operating as a passenger/dive vessel on the Great Barrier Reef for Deep Sea Divers Den in Cairns.
Tony Phisick of Deep Sea Divers Den says they are getting 4 more knots than their other vessels and 30% better fuel efficiency to the 2000 model designed by Paul. He is very happy with the finish and the quality of the fabrication, welding and fit-out on the vessel.

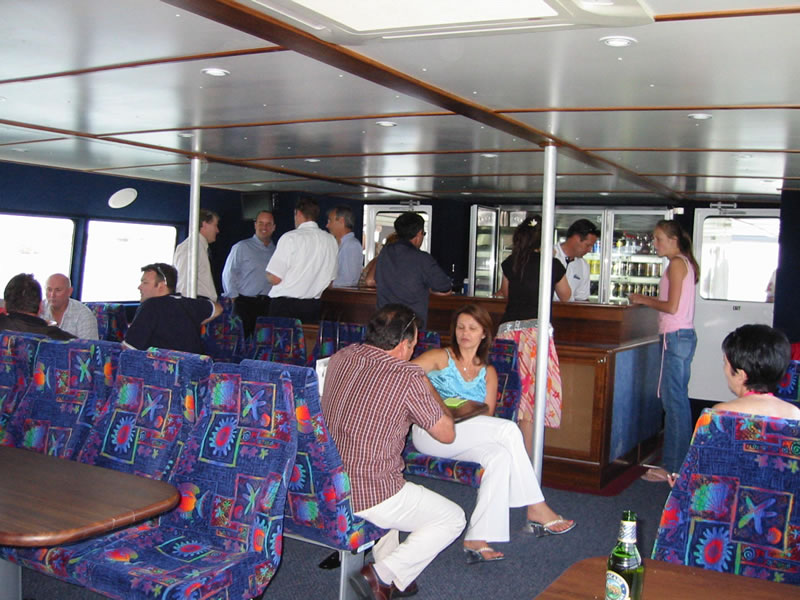

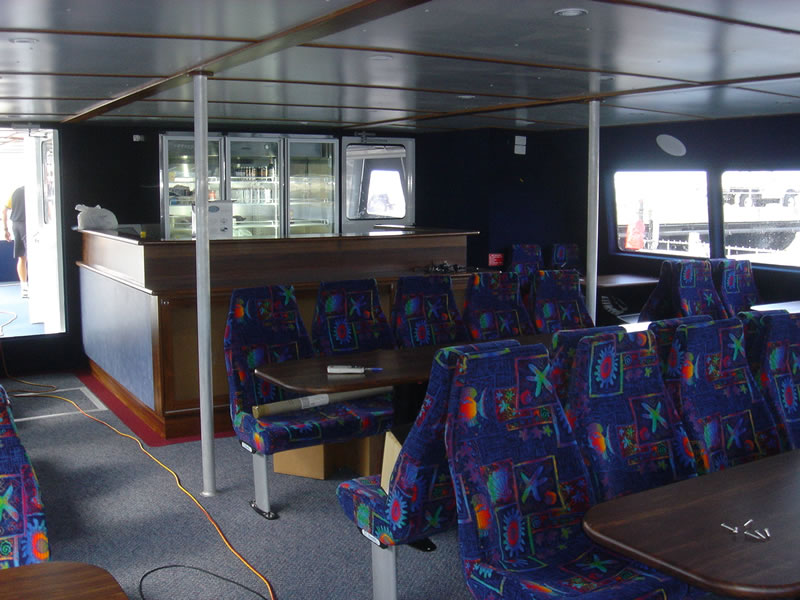

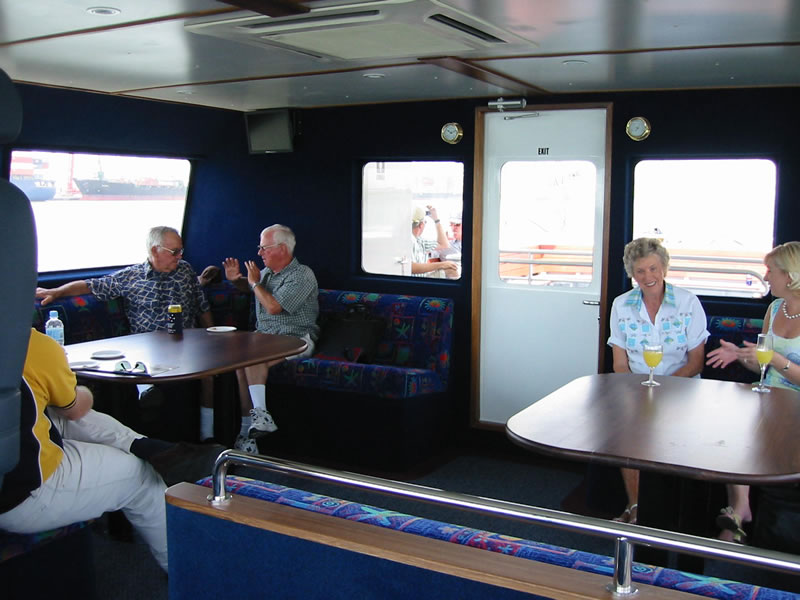

Click on any of the images right to expand the photos.

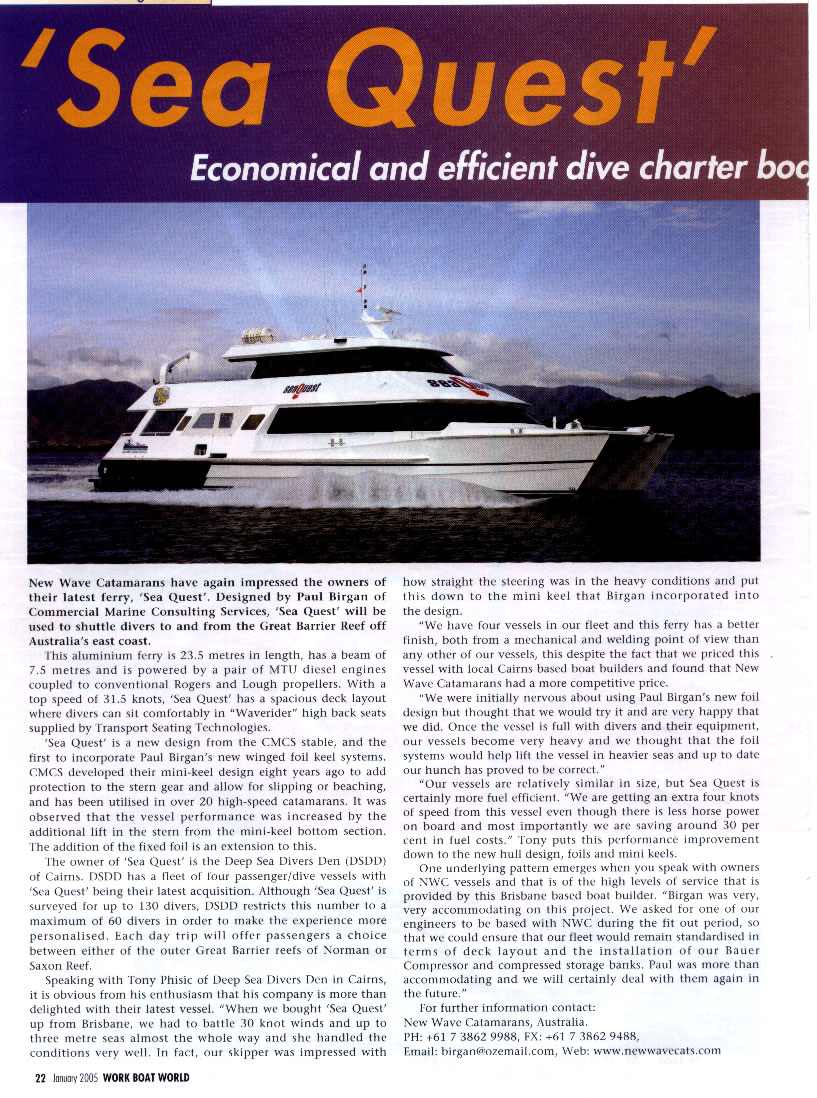

Click here to see workboat world article Page 1 on Seaquest.

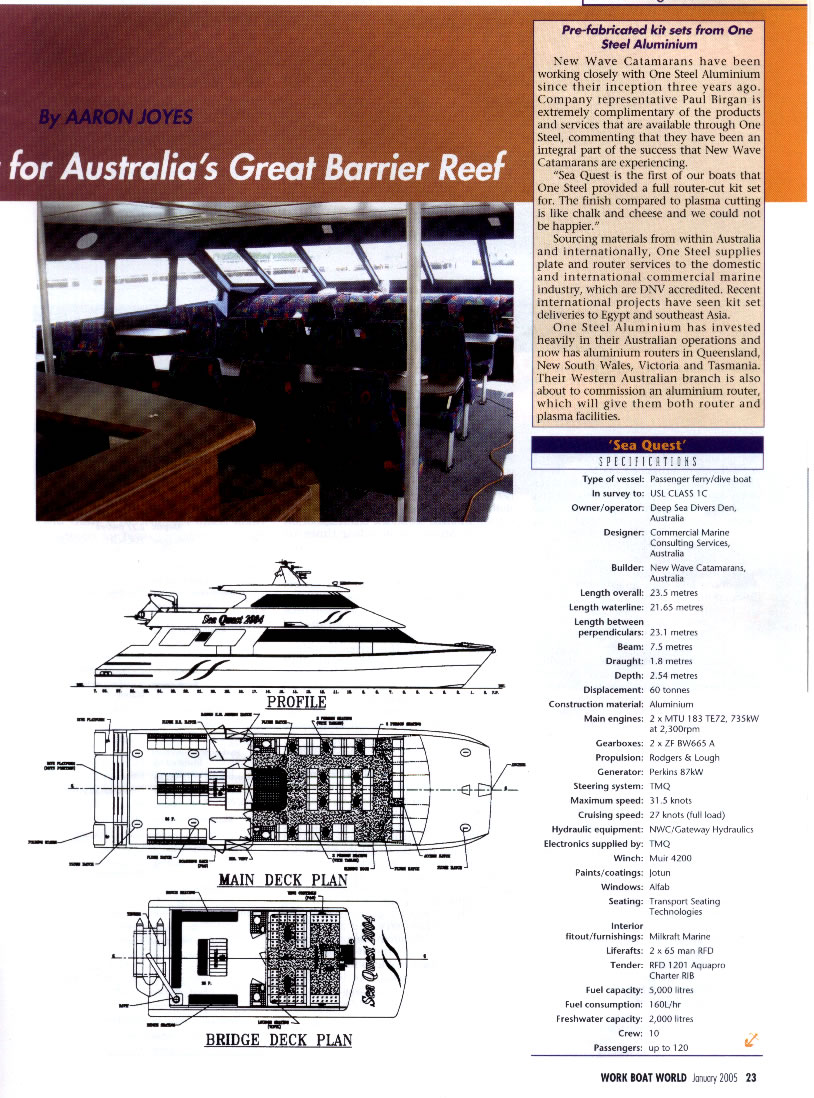

Click here to see Page 2 of the article
| Name of Vessel: SeaQuest |
Type of Vessel: ALUMINIUM DAY DIVE CATAMARAN |
|
In Survey to: USL CLASS 1C |
Home Port: CAIRNS |
|
Owner: DEEP SEA DIVERS DEN |
Owner Contact Phone: (07) 4046 7333 |
|
Operator DEEP SEA DIVERS DEN |
Designer: PAUL BIRGAN CMCS |
|
CAD Software: MAXSURF |
Builder: NEW WAVE CATAMARANS P/L |
|
Hull Construction Material: ALUMINIUM |
Superstructure Construction Material: ALUMINIUM |
|
Deck Construction Material: ALUMINIUM |
Length Overall: 23.5M |
|
Length Waterline: 22.62 |
Length bp.: 21.65 |
|
Beam: 7.50 |
Draught: 1.80 |
|
Depth: 1.75M |
Displacement: 60 T (full load) |
|
Tonnage/s: GRT NRT DWT |
Main Engine/s: 2 x MTU 183 TE72, 735kW @ 2300rpm |
|
(no/make/model/power) |
Gearbox/s: 2 x ZF BW665 A |
|
Propulsion: ROGERS AND LOUGH |
Maximum Speed: 31.5 KNOTS (lightship) |
|
Cruising Speed: 27 KNOTS (full load) |
Bollard Pull: |
|
Generator/s:Perkins 87kW |
Shaft Auxiliary Generator/s: |
|
Side Thruster/s: |
Steering System: TMQ HYDRAULIC |
|
Hydraulic Equipment: GATEWAY HYDRAULICS |
Hydraulic Equipment Installed By: NWC/GATEWAY HYDRAULICS |
|
Electronics Supplied By: TMQ |
Electronics Installed By: NWC |
|
Depth Sounder/s: |
Radio/s: |
|
Sonar: |
Satcom: |
|
Autopilot: |
Compass/es: |
|
Weatherfax: |
GMDSS: |
|
GPS: |
Plotters: |
|
Sound System: |
Video System: |
|
Other Electronics: |
Integrated Electronics By: |
|
Winches: MUIR 4200 |
Capstan/Windlass: MUIR 4200 |
|
Cranes: |
Deck Equipment: |
|
Other Equipment Installed: |
Alarm System/s: |
|
Paints/Coatings: Jotun |
Windows: ALFAB |
|
Seating: NWC |
Flooring/Deck Surface Finishes: CARPET |
|
Interior Fitout/Furnishings: MILLCRAFT MARINE |
Lights: |
|
Rope/Chain: |
Anchors: 2 X 75 KG |
|
Liferaft/s: 2 X 65 man RFD BRISBANE |
Lifeboat/s: |
|
Rescue Boat/s: |
Hold Capacity: |
|
Sullage Capacity: 2 x 1000 ltr |
Water Ballast: |
|
Fuel Capacity: 5000 ltr |
Fuel Consumption: 160 ltr/hr per motor |
|
Freshwater Capacity: 2 X 1000 ltr |
Crew: 10 |
|
Passengers: 125 persons |
Range: 600 KM |
|
Vehicles: |
Type of Fishing Envisaged: |
|
Operational Area: CAIRNS, Great .Barrier Reef. |
Date of Delivery: NOV 2004 |
