"CALYPSO"

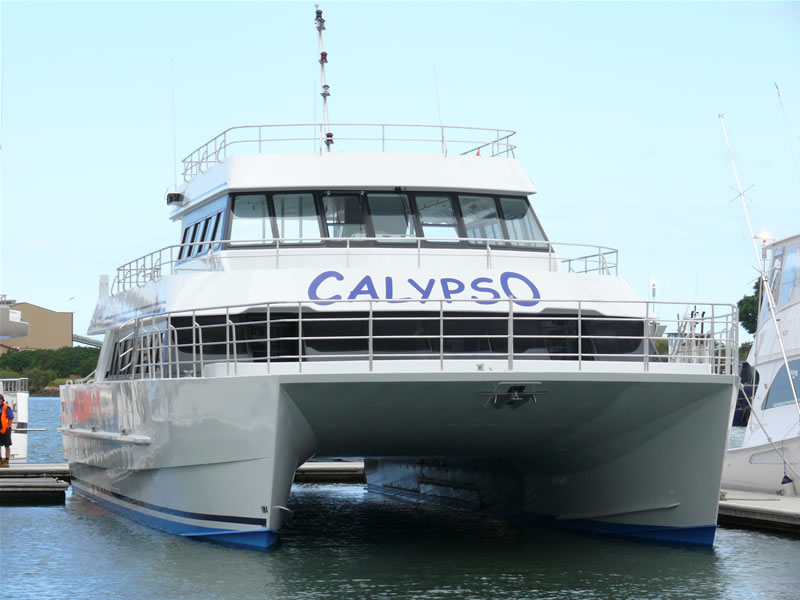

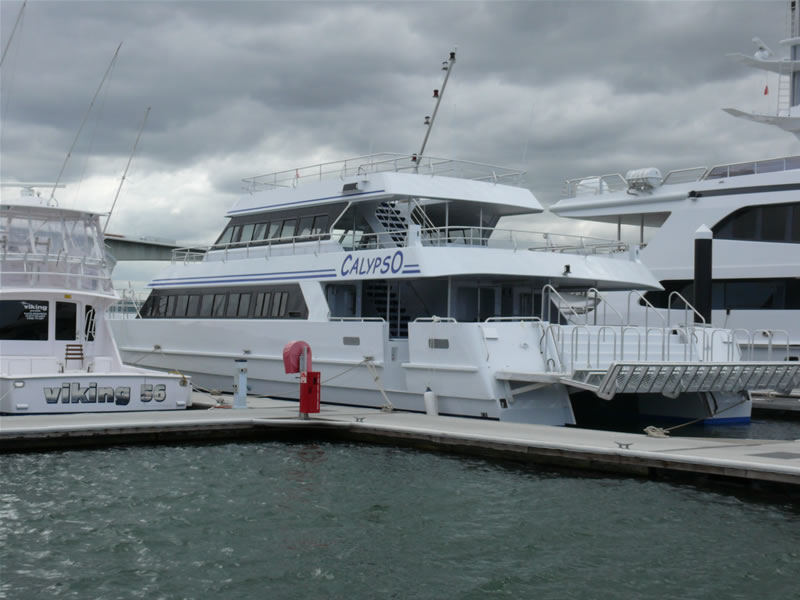

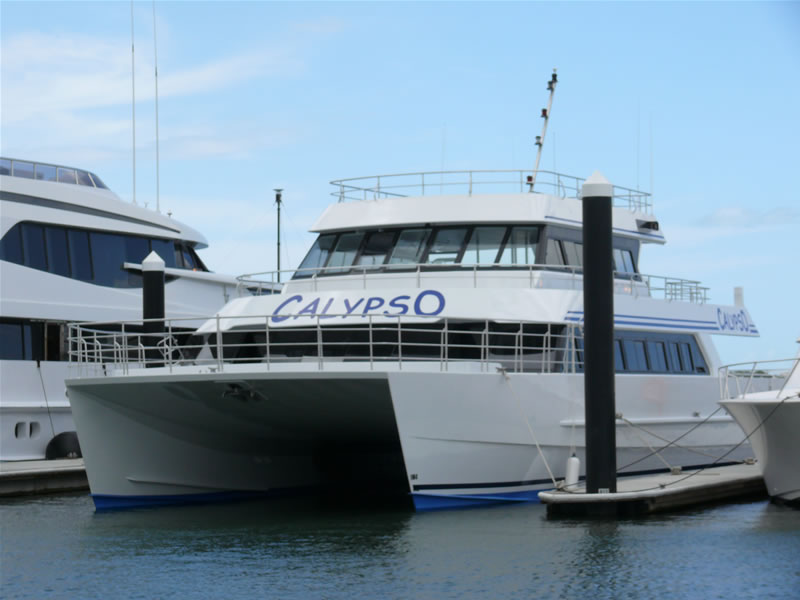

"Calypso" is the third vessel New Wave Catamarans have built for Calypso Cruises in Port Douglas. She was launched in MID 2007,
The sister ship to Calypso is "Eclipse" that achieved 27.5 knots, top speed. These vessels are extremely economical with "Eclipse" using 75 litres per hour cruising at 20 knots on it delivery run from Brisbane to Port Douglas.
She has been designed to provide very comfortable accommodation for dive charters with very low maintenance. With a hydraulic diving platform which can be lowered into the water and allows the dingy to be lifted out of the water when underway.

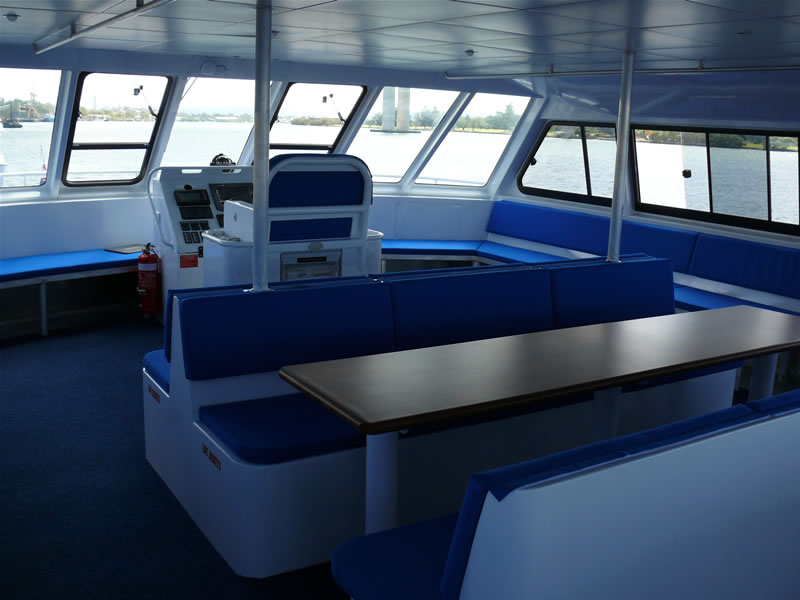

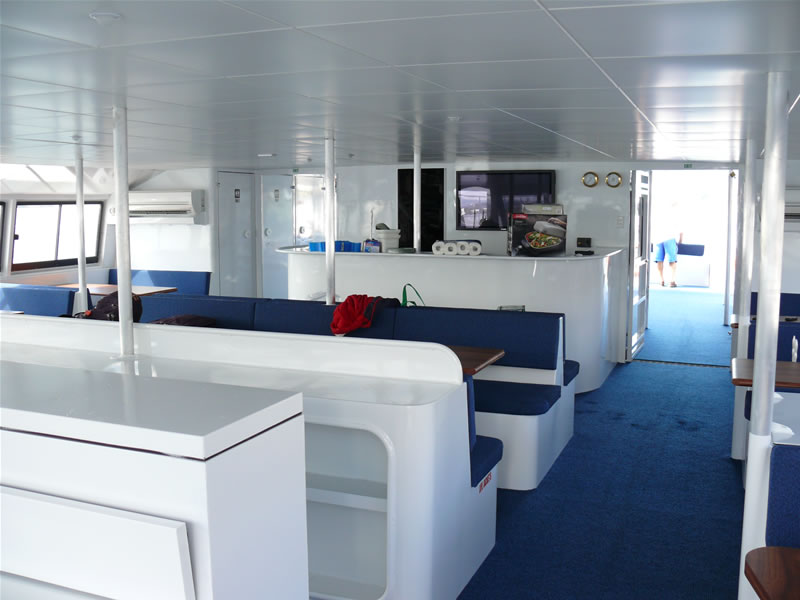

The interiors are very low maintenance and this roomy vessel provides a number of group dive preparation areas.
Click here to go to Calypso Charters web site.
Click here for Video of Sister Vessel converted to Ferry
Specifications
|
Name of Vessel: CALYPSO |
Type of Vessel: ALUMINIUM DAY DIVE CATAMARAN |
|
In Survey to: USL CLASS 1C |
Home Port: PORT DOUGLAS |
|
Owner: CALYPOS REEF CHARTERS P/L |
Owner Contact Phone: 0413388445 |
|
Operator CALYPOS REEF CHARTERS P/L |
Designer: PAUL BIRGAN CMCS |
|
CAD Software: MAXSURF |
Builder: NEW WAVE CATAMARANS P/L |
|
Hull Construction Material: ALUMINIUM |
Superstructure Construction Material: ALUMINIUM |
|
Deck Construction Material: ALUMINIUM |
Length Overall: 23.5M |
|
Length Waterline: 22.62 |
Length bp.: 23.10 |
|
Beam: 9 m |
Draught: 1.80 |
|
Depth: 1.75m |
Displacement: 58 T (full load) |
|
Tonnage/s: GRT NRT DWT |
Main Engine/s: MTU DETROIT SERIES 60 14L 650 H.P. |
|
(no/make/model/power) |
Gearbox/s: TWIN DISC MG 5114A |
|
Propulsion: ROGERS AND LOUGH |
Maximum Speed: 26 KNOTS (lightship) |
|
Cruising Speed: 23-24 KNOTS (full load) |
Bollard Pull: |
|
Auxiliary Engine/s: ZENITH 40 KVA |
(no/make/model/power) |
|
Generator/s: ZENITH 40 KVA |
Shaft Auxiliary Generator/s: |
|
Side Thruster/s: |

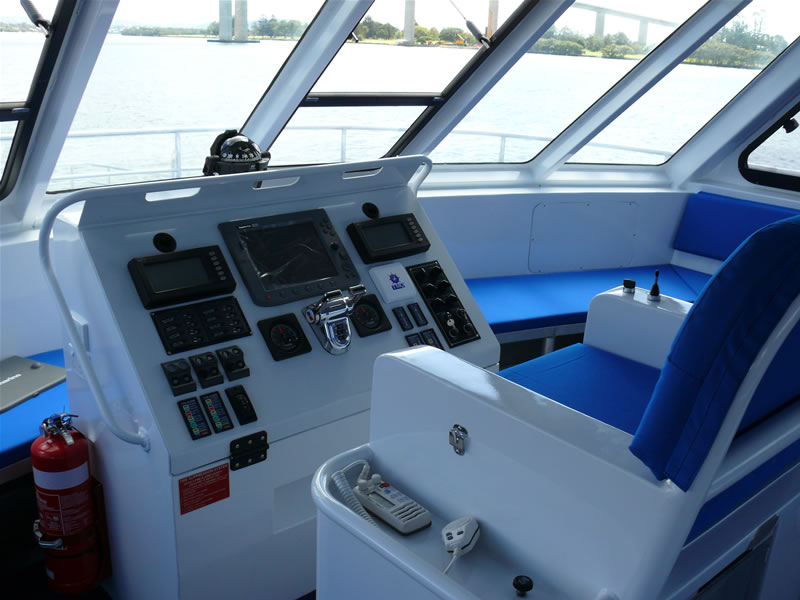

Steering System: TMQ HYDRAULIC |
|
Hydraulic Equipment: GATEWAY HYDRAULICS |
Hydraulic Equipment Installed By: NWC/GATEWAY HYDRAULICS |
|
Electronics Supplied By: TMQ |
Electronics Installed By: NWC |
|
Electrical Installation: IPK ELECTRICAL |
Radar/s: |
|
Depth Sounder/s: |
Radio/s: |
|
Sonar: |
Satcom: |
|
Autopilot: |
Compass/es: |
|
Weatherfax: |
GMDSS: |
|
GPS: |
Plotters: |
|
Sound System: |
Video System: |
|
Other Electronics: |
Integrated Electronics By: |
|
Winches: MUIR 3500 |
Capstan/Windlass: MUIR 3500 |
|
Cranes: |
Deck Equipment: |
|
Other Equipment Installed: |
Alarm System/s: |
|
Paints/Coatings: Protec |
Windows: ALFAB |
|
Seating: NWC |
Flooring/Deck Surface Finishes: CARPET |
|
Interior Fitout/Furnishings: New Wave Catamarans |
Lights: |
|
Rope/Chain: |
Anchors: 2 X 75 KG |
|
Armament/Weapons: |
Safety Equipment: SAM ALLAN WHOLESALERS |
|
Liferaft/s: 4 X 25 MAN RFD BRISBANE |
Lifeboat/s: |
|
Rescue Boat/s: |
Hold Capacity: |
|
Deck Cargo Capacity: |
Water Ballast: |
|
Fuel Capacity: 2 X 3800 |
Fuel Consumption: 80 LTR PER SIDE @70% MCR at 20 k |
|
Freshwater Capacity: 2 X 1000 LTR |
Crew: 5 |
|
Passengers: 95 DIVERS |
Range: 2000 KM |
|
Vehicles: |
Type of Fishing Envisaged: |
|
Operational Area: PORT DOUGLAS/ G.B. REEF |
Date of Delivery: Mid 2007 |
Remarks: DAY DIVE BOAT WITH 220 PASSENGER SEATING AS FERRY |
ONLY TAKE OUT 100 FOR DAY TRIPS, ENOUGH ROOM FOR MOST TO LIE DOWN. |
|
OTHER FEATURES |
AIR-COMPRESSOR WITH AIR BANKS FITTED. |
|
AFT' HYDRALIC PLATFORM FITTED WITH HYD |
TENDER LIFT ARMS, HYD' TRIM TABS. |
