"Quad Cat 12M" Revolutionary New Catamaran Design (4 Outboard)



video camera, vcr icon Video1video camera, vcr icon Video2

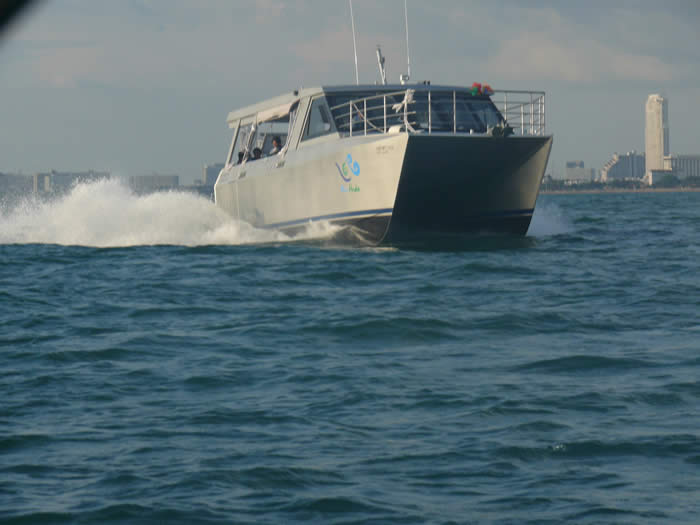

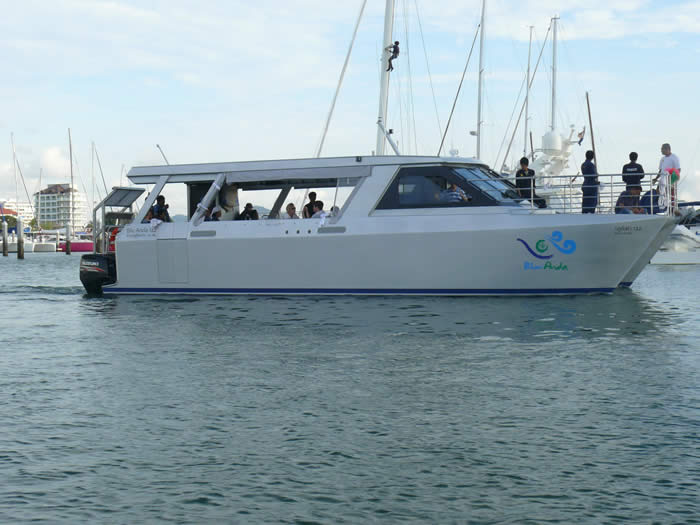

The new Sea Speed designed "Quad Cat" was launched late Janurary 2012. Built by The Australian Thai Team in Thailand the new high speed aluminium catamaran has shown excellent results at sea trails in the Gulf of Thailand. Named Blu Anda 122 is the first vessel built by the builder and if the results are any indication they will build many more in the future.

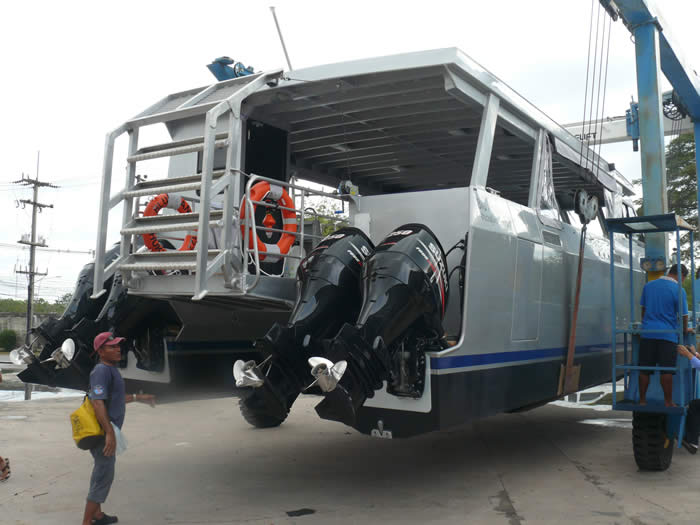

The 12.3 Metre Power Cat is powered by four (4) Suzuki 250 H.P. four stroke Outboard Engines giving a top speed of over 37 knots and a  fully loaded speed of 35 knots with 30 passengers. By all reports this is the first time the quad' outboard application has been sucessfully completed with high speed catamarans of around this size with Suzuki outboards.  Fuel consumption is suprisingly good with a total of 80 ltrs/Hr at 22 knots and 130 ltrs/hr at 28 knots.



Click on photo's to enlarge images



The sophisticated fuel system includes 3 off 200ltr aluminium fabricated seperate fuel tanks for each hull giving a range of over 300 Nautical Miles at 25 knots. The fuel tanks are situated below deck in a fully ventilated compartment with Vetus vents, fans and stainless steel grills. The compartments have vapor detectors with alarms at the helm.



This new power cat is a charter vessel set up to do day trips in coastal water operations. The seating is custom made by the builder to a new Sea Speed design and are fully fabricated bench type with cushions tray table and hand rests. The seating is configured in a back to back arrangement with lightweight honeycomb tables between them allowing for dining in confort during rough trips. The deck layout has a small galley forward.

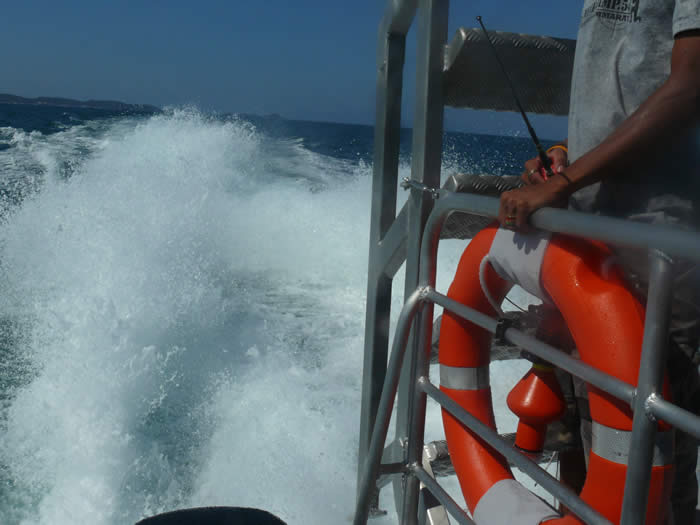

The aft' deck has a fold down platform which can be used for both beach landing and as a snorkeling/dive platfrorm at sea. The platform is attached to a fixed platform which extends out past the outboards. This is complemented by three fresh water shower units, one overhead plus one resessed units each side. Beside the platform is an aft' toilet compartment which is full size which is a nice change from the crampt set ups of similar vessels of this size.



On board white goods include flat screen T.V.s with live streaming GPS navigation abd dvd entertainment plus sterio sound system and Bosh speakers. also a 4 stage cctv system.



Speed, confort, fuel economy and operational options such as day cruise, dive boat, evening cruise, party boat, ferry, etc all add to the perfect large outboard driven catamaran.

video camera, vcr icon Video1video camera, vcr icon Video2



Specifications

Name of Vessel:

Blu Anda 122

Type of Vessel:

DIVE CATAMARAN

In Survey to:

USL

Home Port:

Not released

Owner:

Not released

Owner Contact

Not released

Operator

Not released

Designer:

Seaspeeddesign.com

CAD Software:

MAXSURF

Builder:

The Australian Thai Team

Hull Construction Material:

ALUMINIUM

Superstructure Material:

ALUMINIUM

Deck Construction Material:

ALUMINIUM

Length Overall:

 12.3M

Length Waterline:

11.49M

Length bp.:

11.90M

Beam:

4.36M

Draught:

55MM

Depth:

1.35M

Displacement:

10 TONNE

Tonnage/s:

46 GRT

Main Engine/s:

4 X Suzuki 250 OB

(no/make/model/power)

Suzuki 250 HP @ 6000 RPM

Gearbox/s:

SUZUKI

Propulsion:

SUZUKI

Maximum Speed:

37 KNOTS LIGHT

35 KNOTS LOADED

Cruising Speed:

28-30 KNOTS

Bollard Pull:

NIL

Generator/s:

INVERTER

Shaft Auxiliary Generator/s:

 NIL

Side Thruster/s:

NIL

Steering System:

SUZUKI

Hydraulic Equipment:

SUZUKI





Electronics Supplied By:

Daowthong

Marine

Electronics Installed By:

The Australian Thai Team

Depth Sounder/s:

Samyung

Radio/s:

ICOM

Sonar:

-

Satcom:

-

Autopilot:

-

Compass/es:

Ritchie

Weatherfax:

-

GMDSS:

-

GPS:

Samyung

Plotters:

Samyung

Sound System:



Video System:^p

Domestic

Other Electronics:

CCTV & DVR

Electrical  By:

 Electrical

Winches:

-

Capstan/Windlass:

MUIR 1250

Cranes:

-

Deck Equipment:

Showers/dive platform

Other Equipment Installed:

-

Alarm System/s:

Rule/Vetus

Paints/Coatings:

JOTAN

Windows:

ALFAB AUSTRALIA

Seating:

Gold Coast Ships seating

Flooring/Deck Surface Finishes:

NON SKID

Interior Fitout/Furnishings:

Honeycomb walls, tables, bar

Lights:

LED





Anchors:

2 X 30 KG

Liferaft/s:

Jackets 150 N

Lifeboat/s:

-

Rescue Boat/s:

-

Hold Capacity:

-

Sullage Capacity:

120 LTR

Water Ballast:

-

Fuel Capacity:

6 X 200LTR

Fuel Consumption:

80LTR/HR @ 20 KN

130LTR/HR @ 28 KN

Freshwater Capacity:

200 LTR

Crew:

2

Passengers:

30 DIVERS/3 CREW (up to 40 pax as ferry)

Range:

315 NM

Vehicles:

-

Type of operation Envisaged:

TOURIST, FERRY,

DIVE BOAT

Operational Area:

COASTAL

Date of Delivery:

26TH JAN 2012
