   GA Plan click to enlarge

12 m (40 pax) Glass Bottom Kit Boat

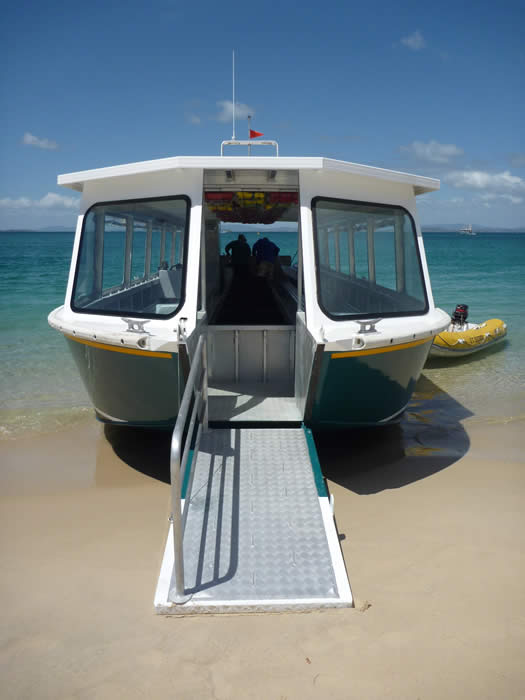

The above Kit glass bottom boat built in Jordon for a Red Sea operator

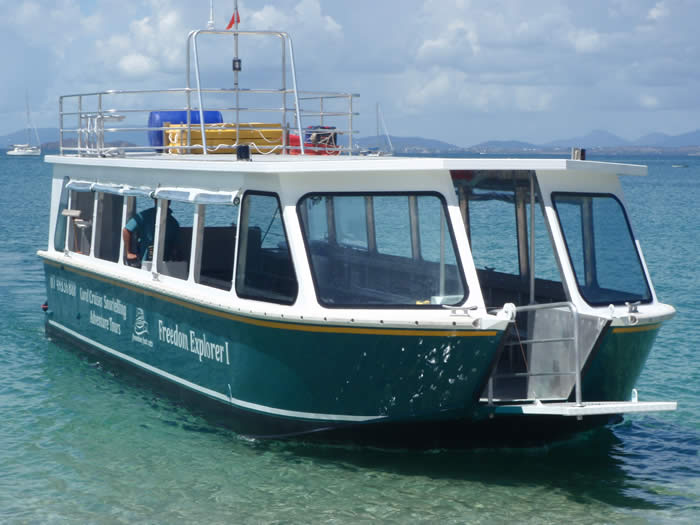

Above is the latest Kit boat built in Panang for a Langkawi operator

Click here to see the progress photo's of construction

CLICK ON THE ABOVE IMAGES TO ENLARGE

Another successful Sea Speed design for the tourist industry, is our 12 Meter aluminium 'Coral Viewer'. The design was computer generated using the latest software and the computer cut ckd was supplied to the builders for fabrication.

Three units have been delivered so far, the first in January 2010. the second in February 2013 and the last in April 2015. The hull form has good shape, allowing for operation in choppy seas, along with its wide beam which gives great stability.



The design incorporates seven large central viewing boxes separate from the main hull integrity which can be taken out while the vessel is in the water. The Kit includes one spare box as a back up.



This is a great little tourist vessel which allows its passengers to appreciate the beauties of the reef and its aquatic life without getting their feet wet.

Principal Dimensions

Length    (loa)      12.40 Metres

Length    (rule)     11.90 Metres

Length    (lwl)       10.96 Metres

Beam                    3.77 Metres

Depth                     .86 Metres

Draft                      .30 Metres

Passengers              40 Pax

Powerings               2 x 60 h.p.   ( Outboards)
