24 M Live-Aboard Cat





                                           Click on photo's above to enlarge

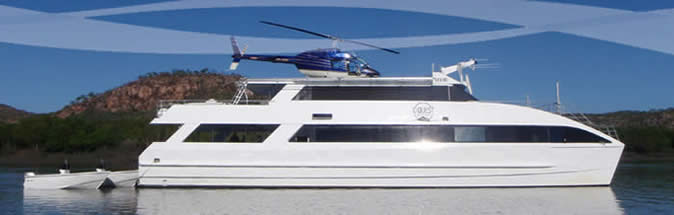

"Sea Speed" have designed a 24 Metre overnight Dive/Cruise Catamaran called "C-Quest" for West Australian and Kimberly coast services.  The vessel was launched February 2009 and is for Suba-Aqua Enterprises who are replacing their existing monohull vessel with this purpose designed and built craft to suit there needs.

The design is from Paul Birgan of Sea Speed Design and is based on the very successful 24 metre wide-body dive catamarans design and built for “Calypso

Dive” over the past few years. This proven efficient hull is being fitted out with cabins for extended offshore work boat, research and tourist operations. The sleek new deckhouse styling is similar to “Tusa 5” launched by New Wave in 2007.



The lower level cabin has a large open galley, lounge and saloon area for comfortable indoor living with four twin cabins with en-suites and a four crew cabin. The large aft’ lower dive deck features a hydraulic dive platform which houses the 3 man submarine. The hydraulic platform lowers between the hulls to launch and retrieve the submersible and when empty doubles as a lowering feature deck.

The upper level has a large wheelhouse with lounges behind for passenger viewing. Behind this are a spacious twin master cabin with en-suite and a three berth crew cabin. The Aft’ upper deckhouses accommodates two tenders and a hydraulic crane.

Powered by twin Detroit S 60 (740 h.p.) diesel engines through Prop/Shaft and Mini-keels the fuel efficient cruising speed is expected to be over 20 knots at around 80 liters per hour per engine. Other features include Twin 40 kva Zenith generators, fully air-conditioned, 2 x 5000 ltr long range fuel tanks, Sun Roof.



Principal Dimensions

Length (loa) 24.90 Metres

Length (lwl) 24.90 Metres

Beam 9.00 Metres

Depth 2.45 Metres

Draft 1.75 Metres

Class USL Code 2B

(12 pax + 4 crew)

1D (52 pax + 4 crew)
