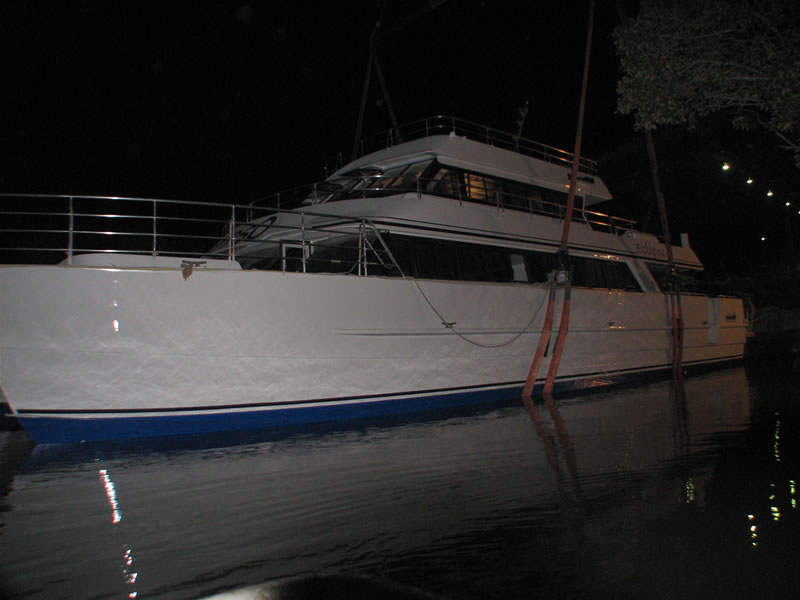

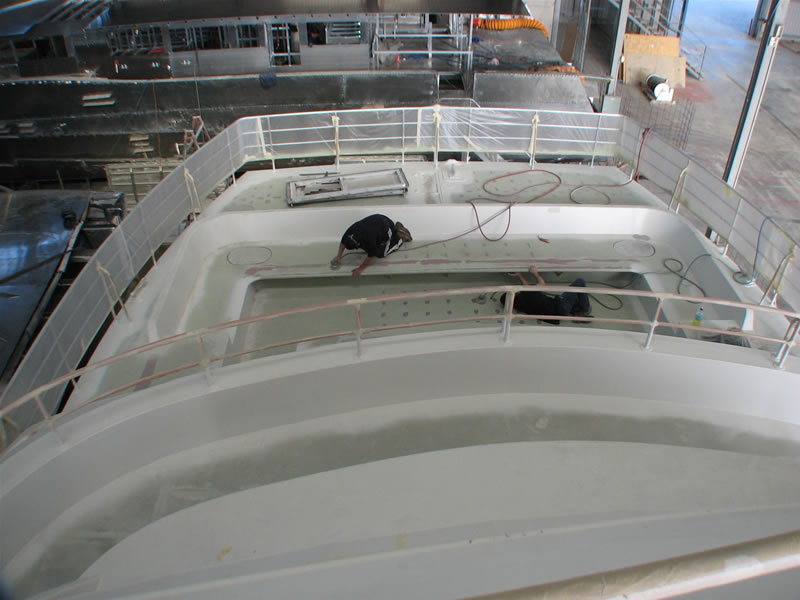

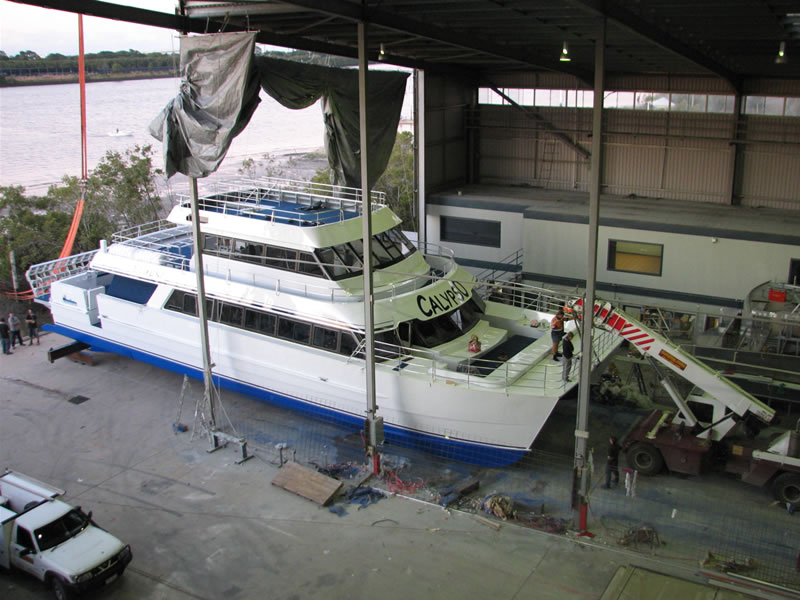

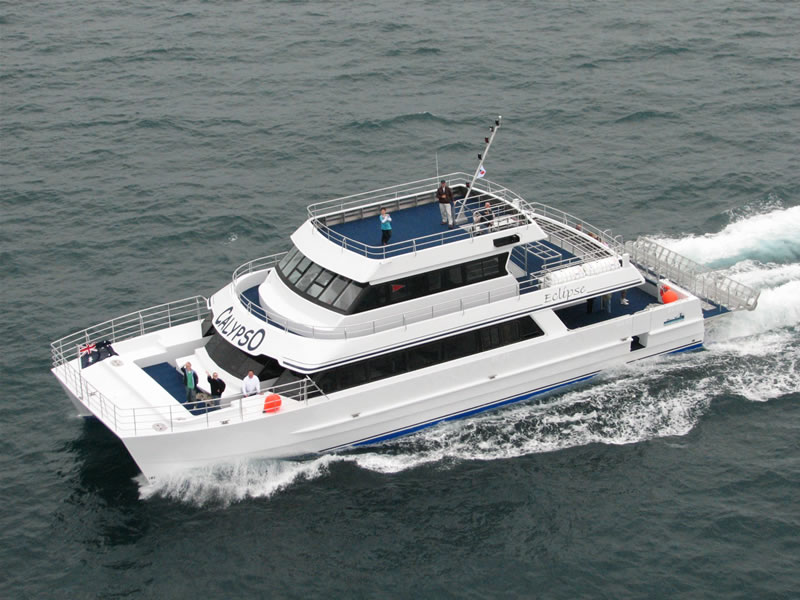

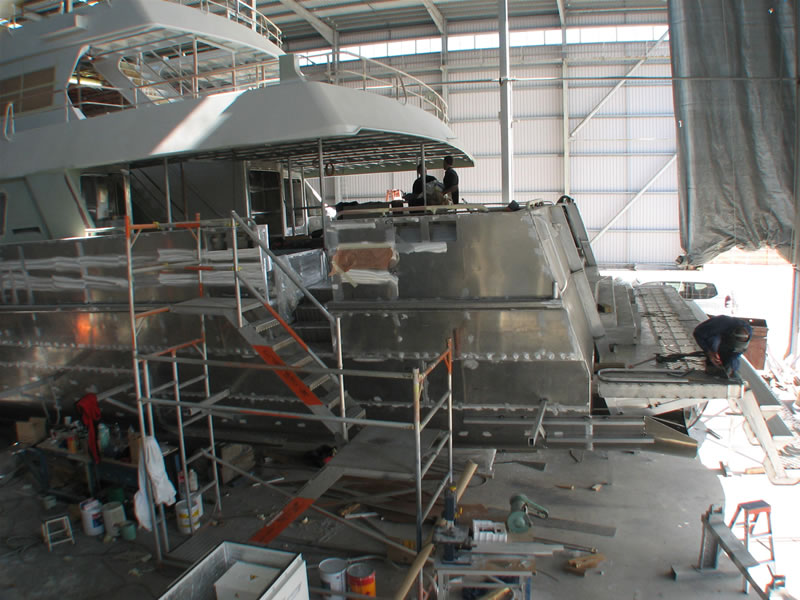

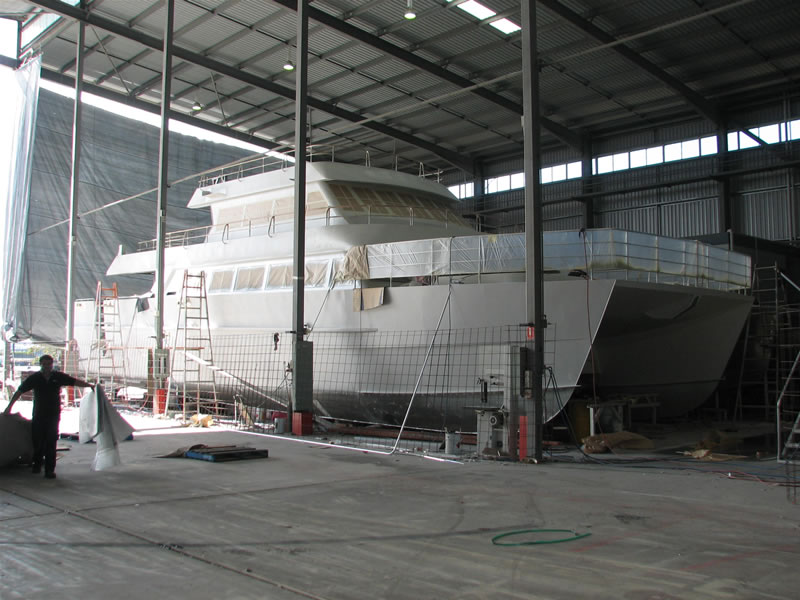

Eclipse Crusing In Moreton BayEclipse TravellingRear Cockpit 24m Dive CatamaranEclipse Under WayEclipse SaloonRear CockpitLooking Down From The Top Deck of Eclipse24m Dive Cat24m Dive CatEclipse's Hydraulic Diving PlatformEclipse Being BuiltView From The Top Deck During ConstructionEclipse In The Final Stages of ConstructionEclipse Being Lifted By CraneEclipse Just In Water

Eclipse Launched 2006

Eclipse is the newest edition to Calypso Cruises in Port Douglas. Launched in June 2006, this new wide body style catamaran achieved 27.5 knots, top speed. This vessel is extremely econimical using 75 litres per hour cruising at 20 knots on it delivery run from Brisbane to Port Douglas.

She has been designed to provide very comfortable accommodation for dive charters with very low maintainance. With a hydraulic diving platform which can be lowered into the water and allows the dingy to be lifted out of the water when underway.

The interiors are very low maintainance and this roomy vessel provides a number of group dive preparation areas.

Click here for Video of this Vessel converted to Ferry

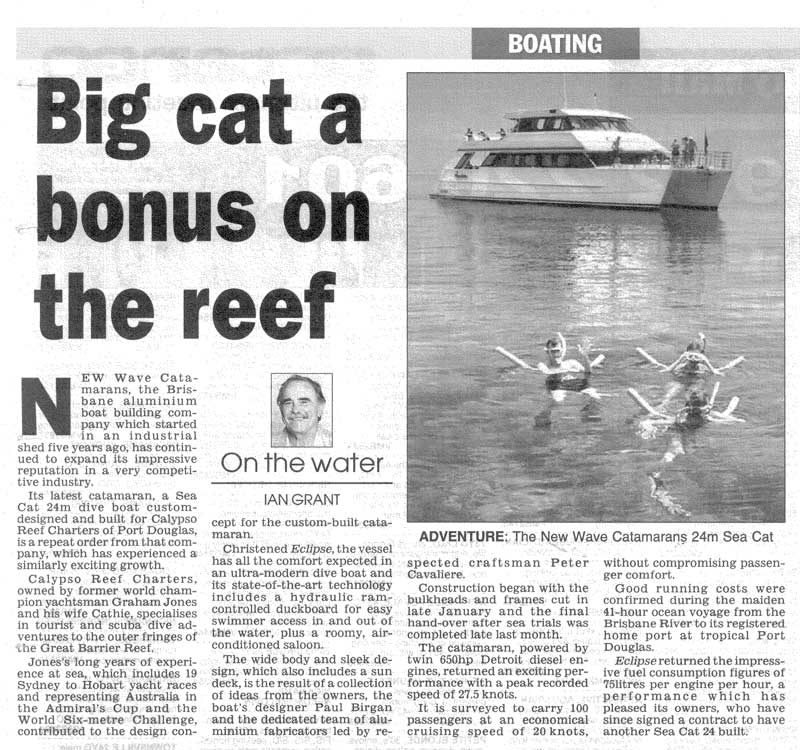

Click here to see the Article on Eclipse in the Brisbane Sunday Mail. Note photo the the article is of the owners previous vessel "Eclipse" which New Wave Catamarans also built.


Hi resolution images Note: these files are 1 to 2 Meg in size
Quickest way to download is to right click(windows) on each link below and save picture

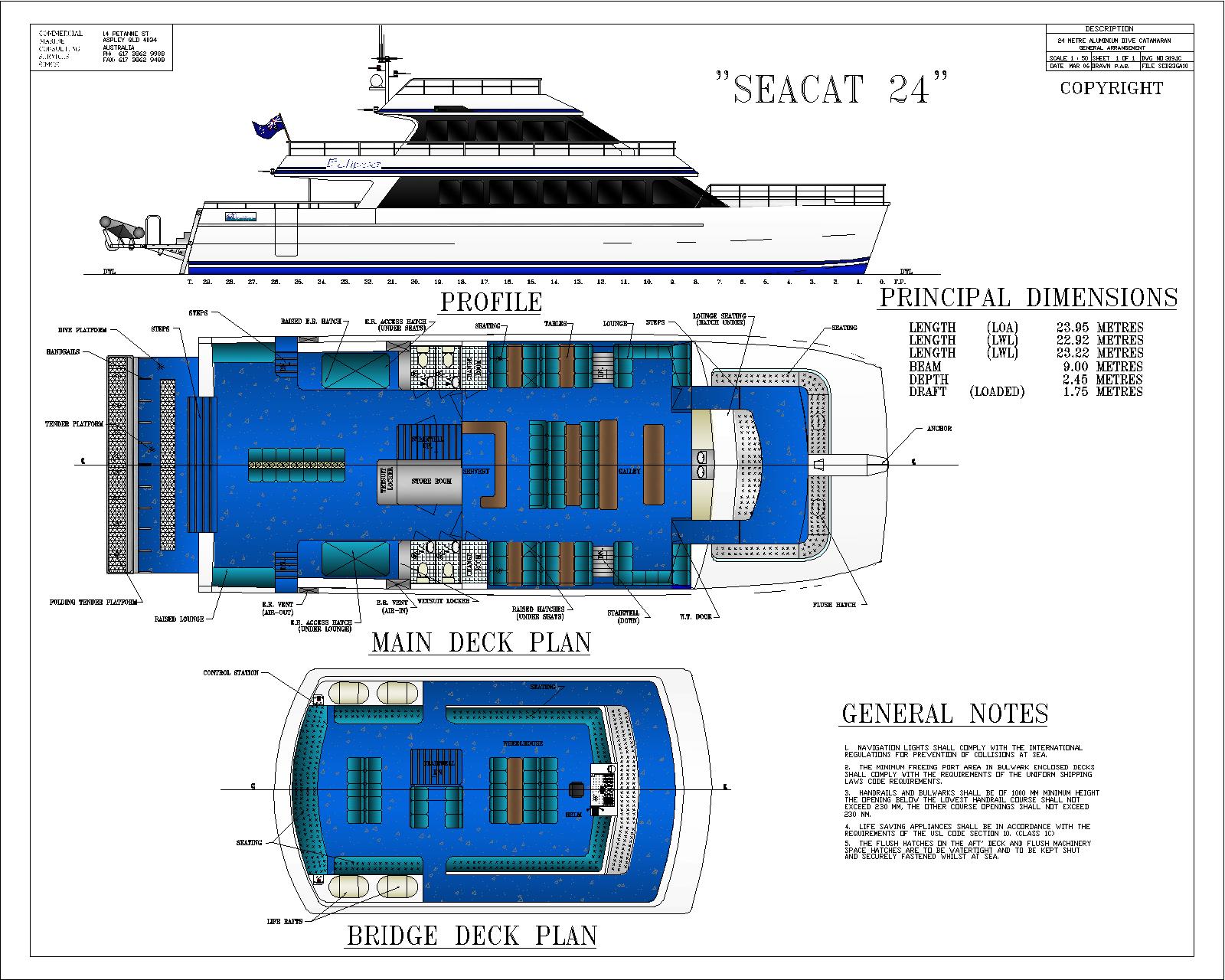

Colour General Arrangement

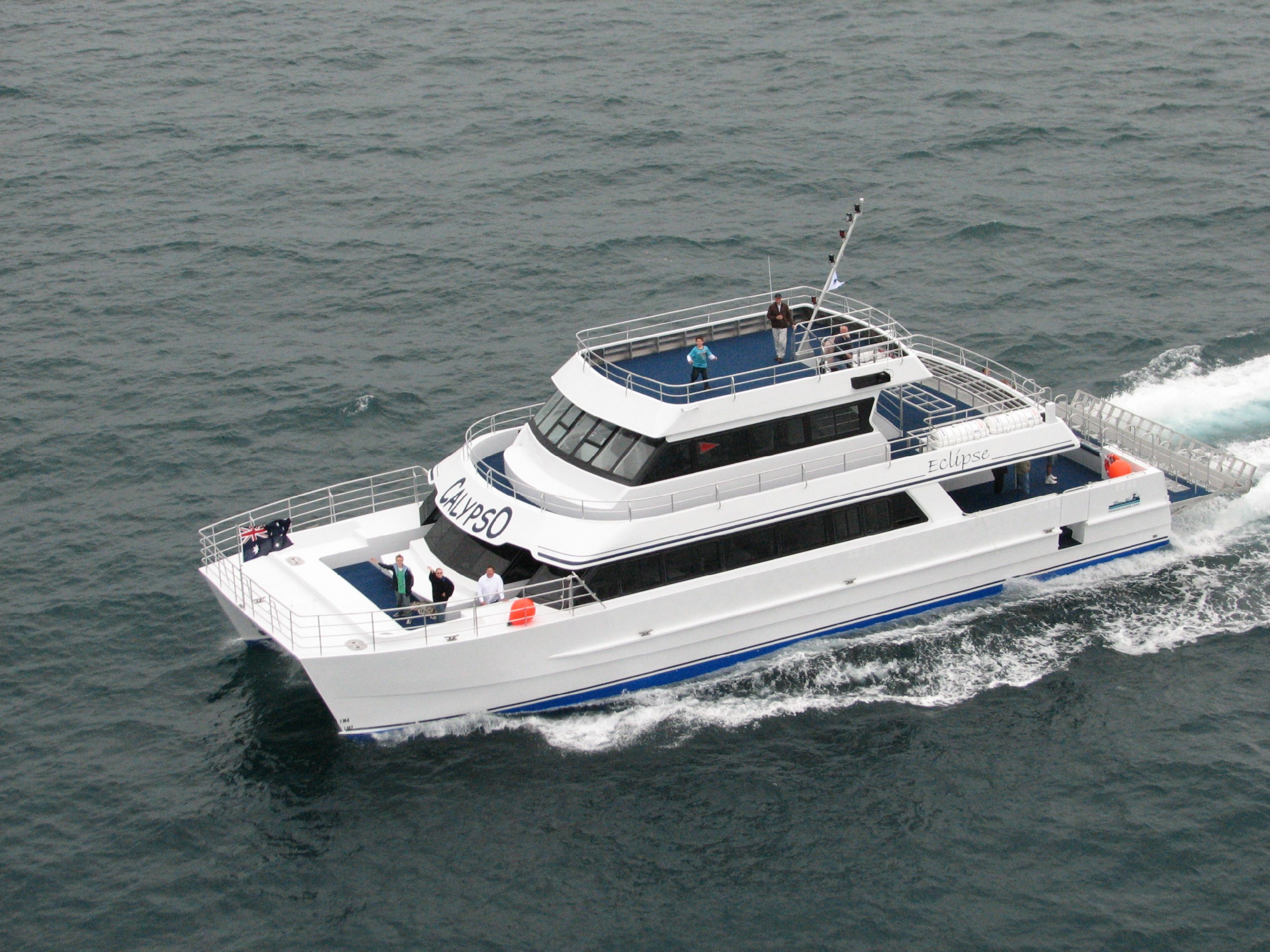

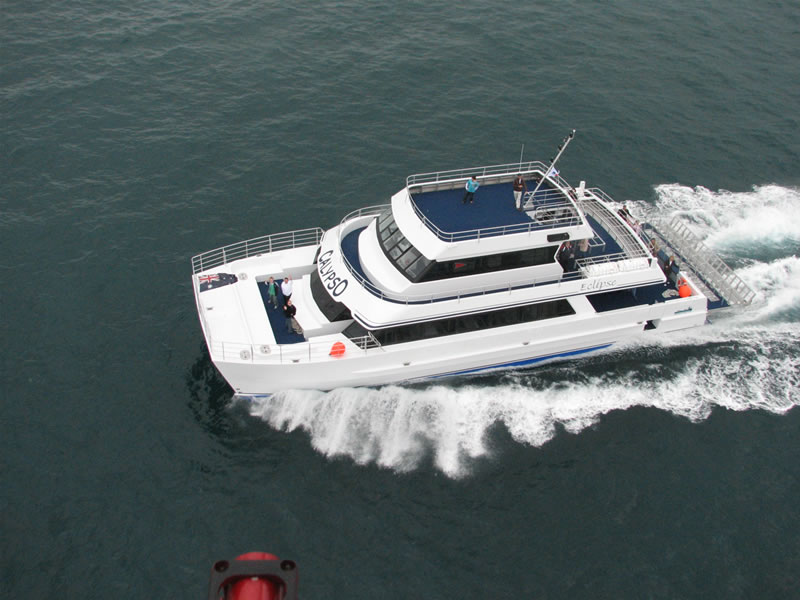

Port Side Shot Fast

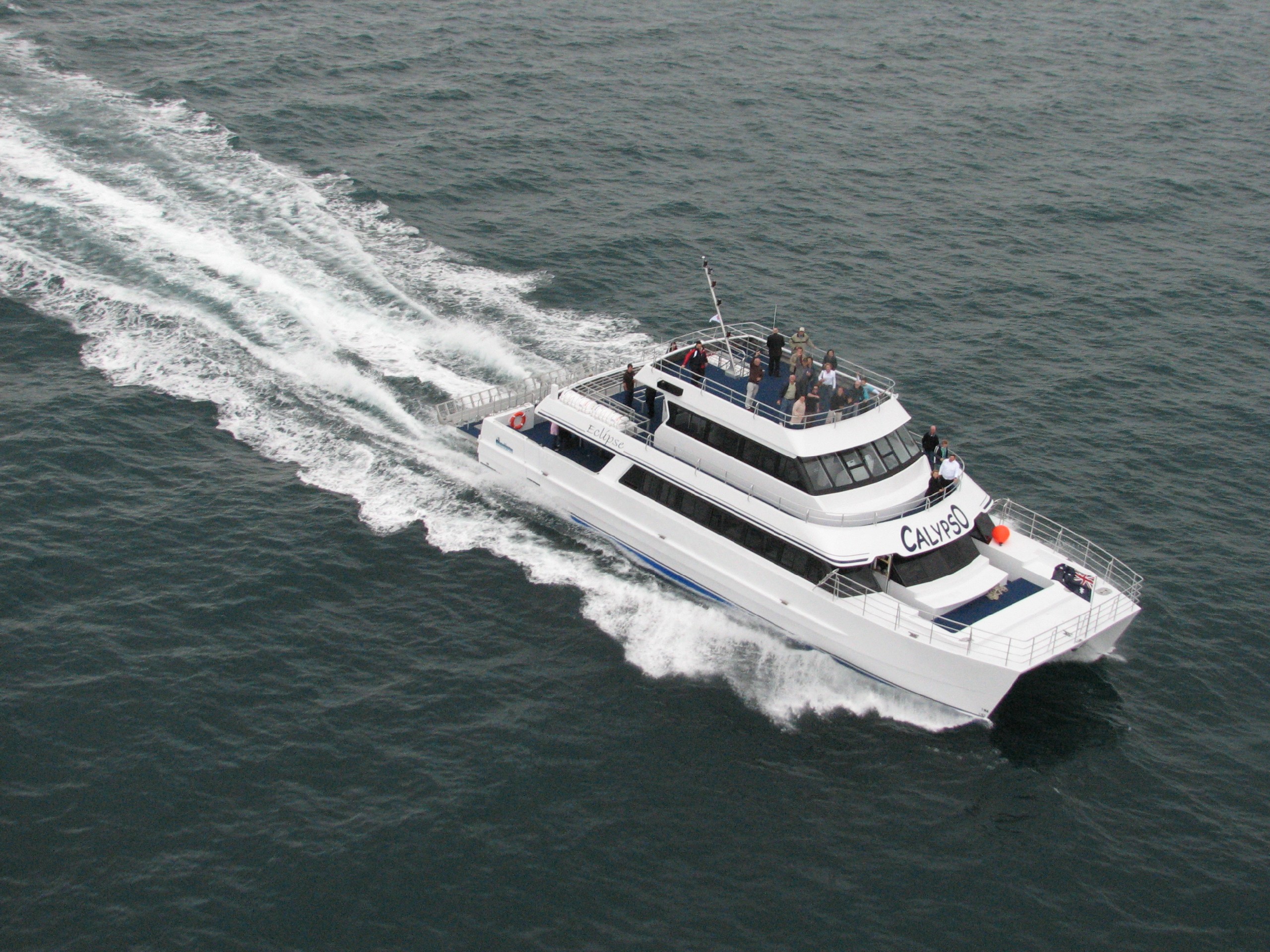

Starb Side Shot Fast

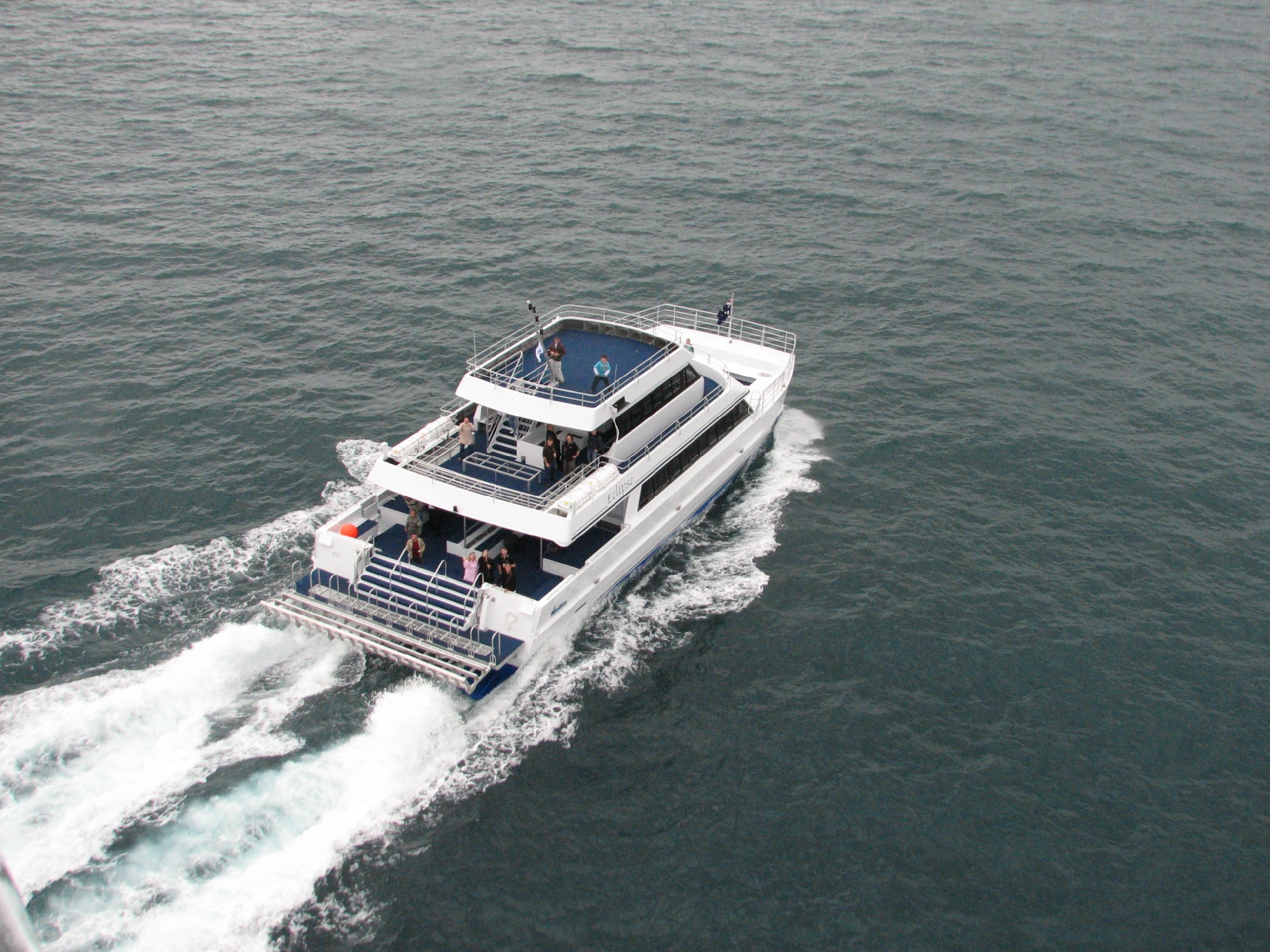

Stern Shot Fast

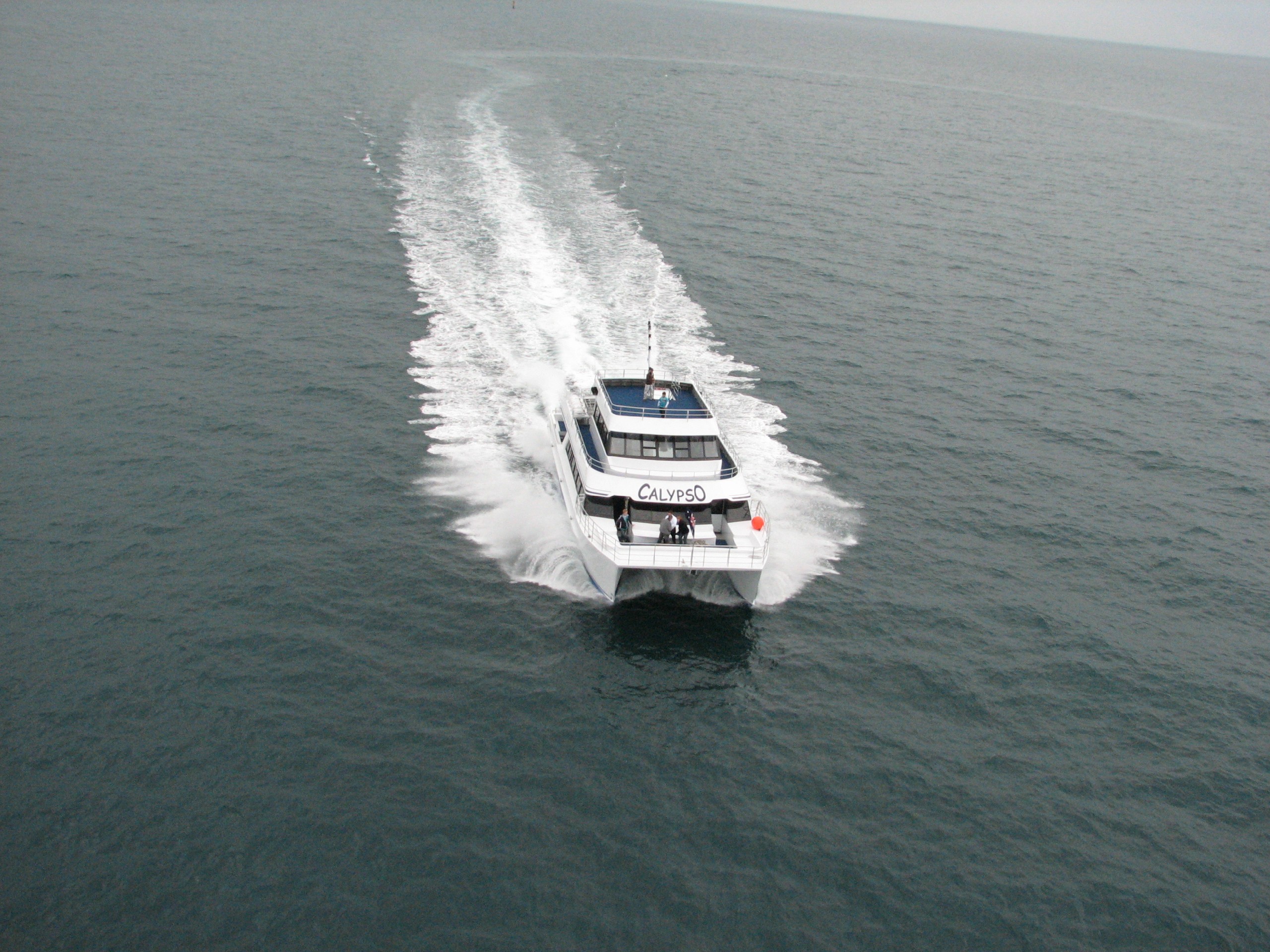

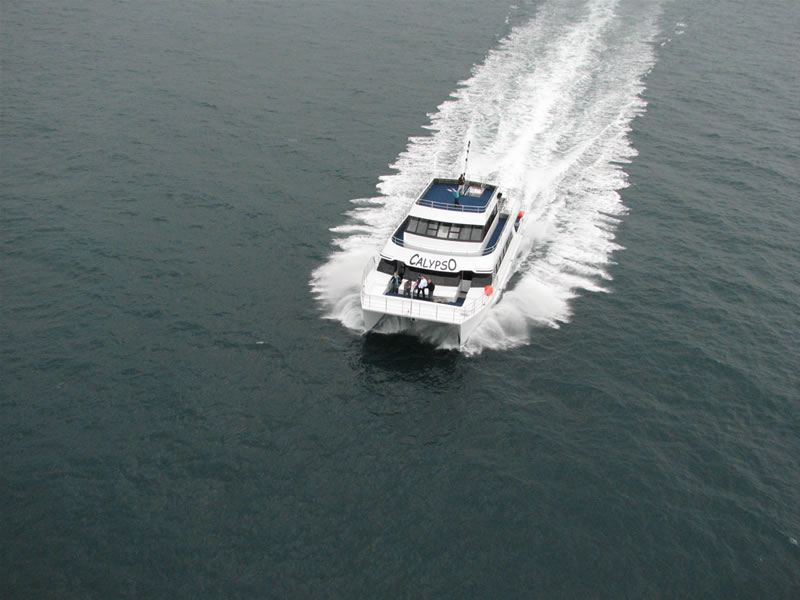

Bow Shot Fast

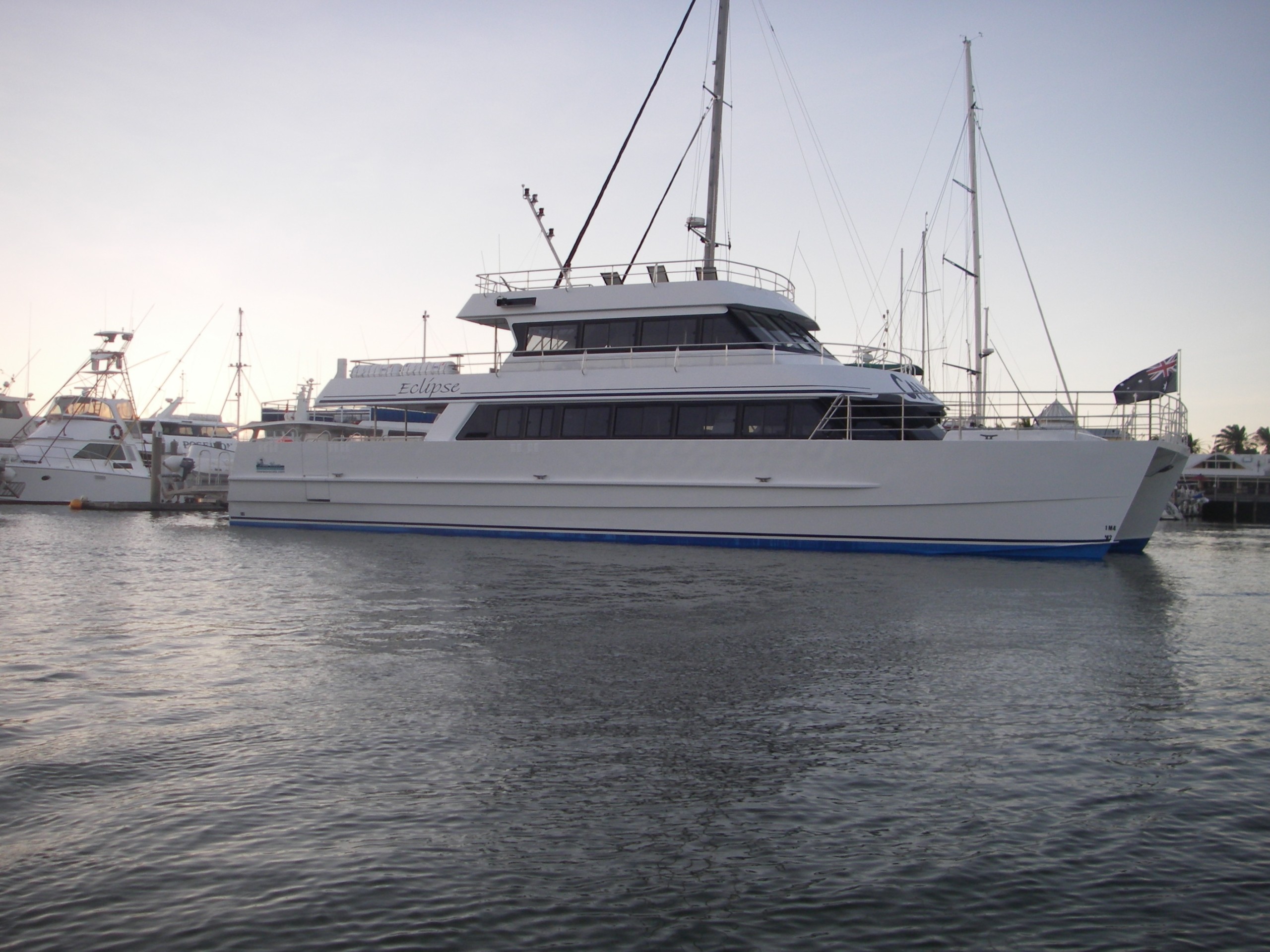

Starb Shot at rest

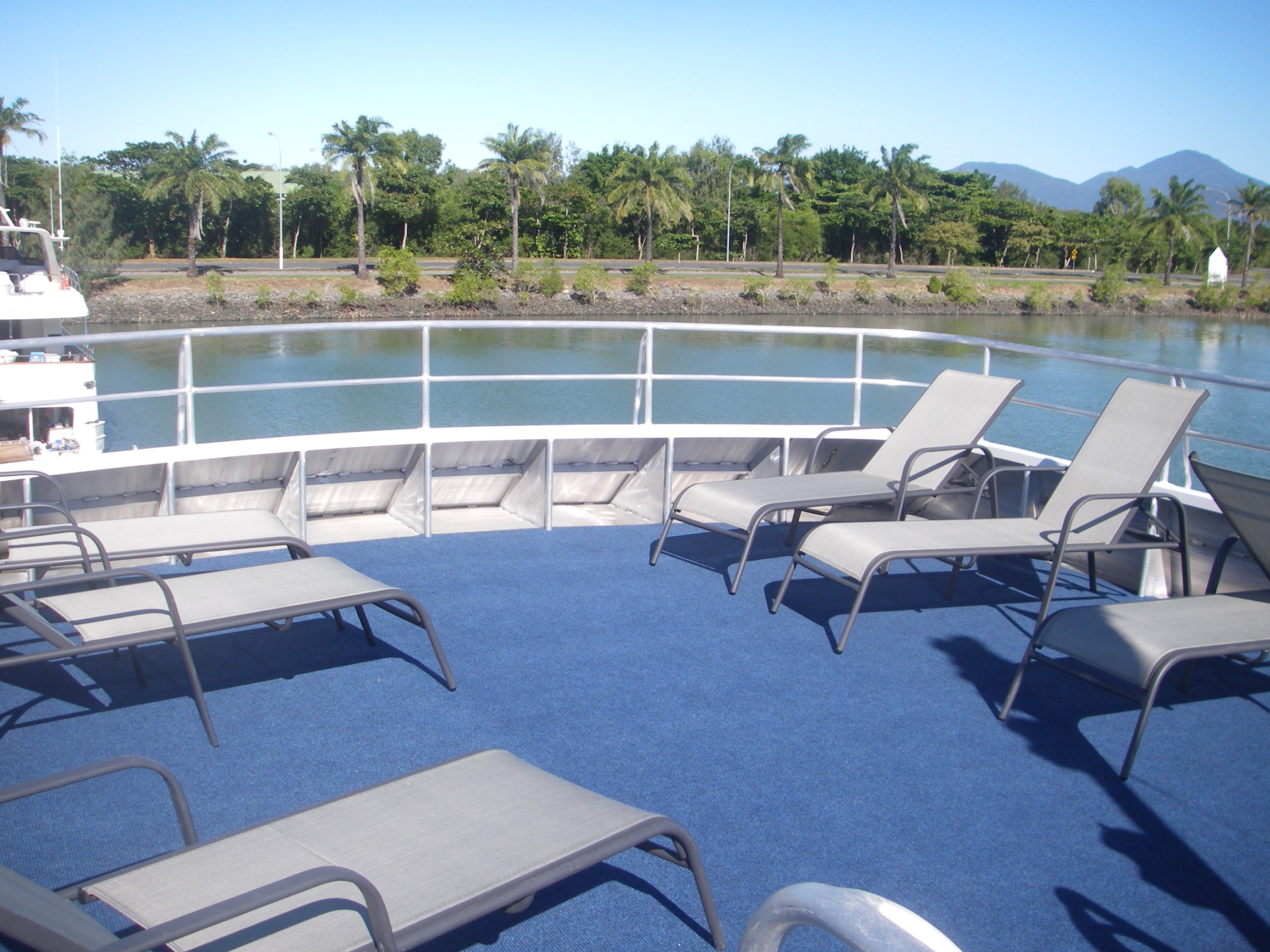

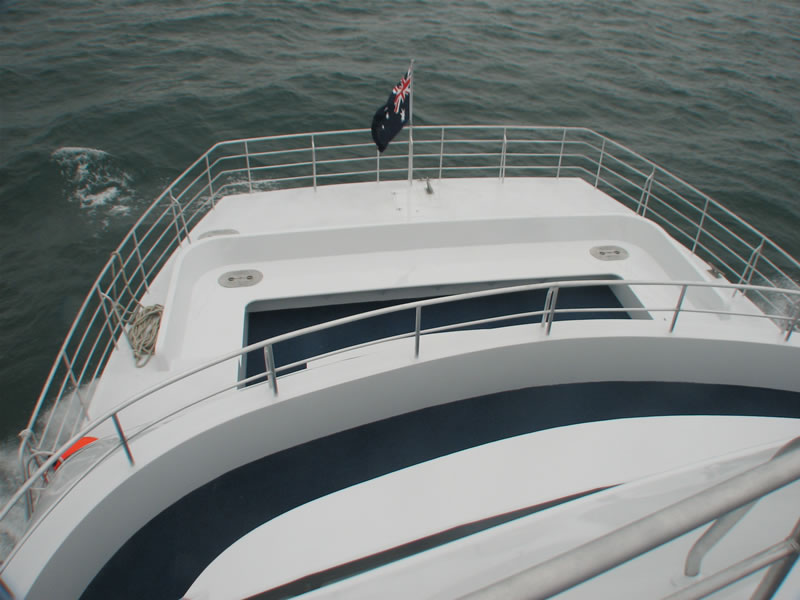

Top Deck

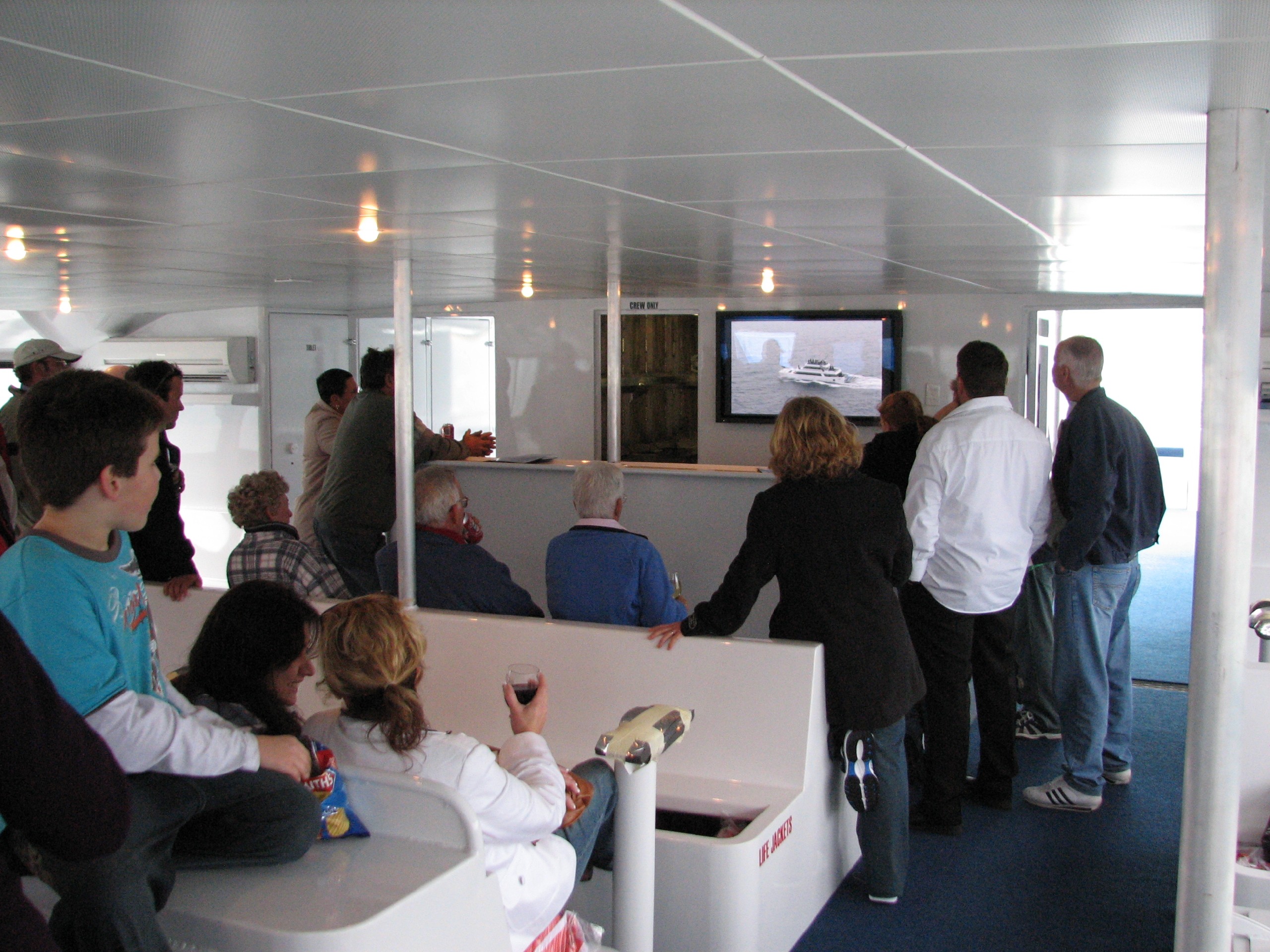

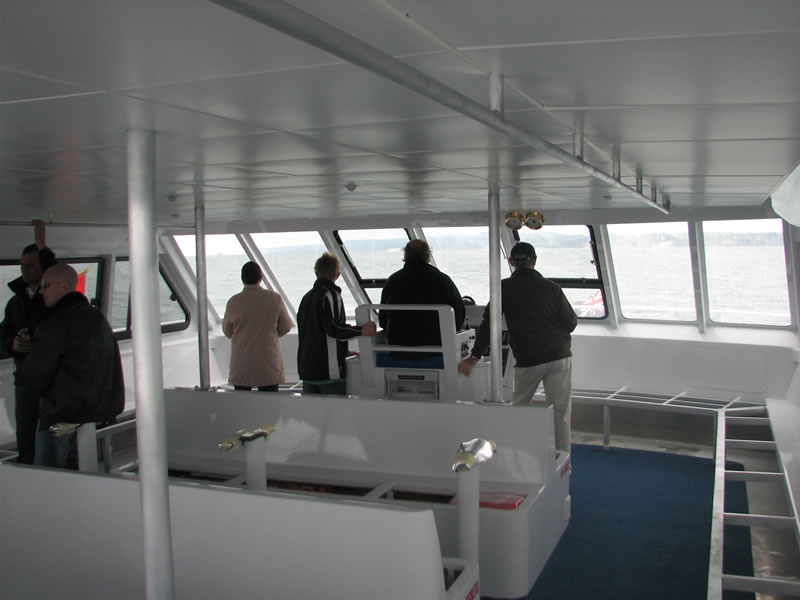

Saloon

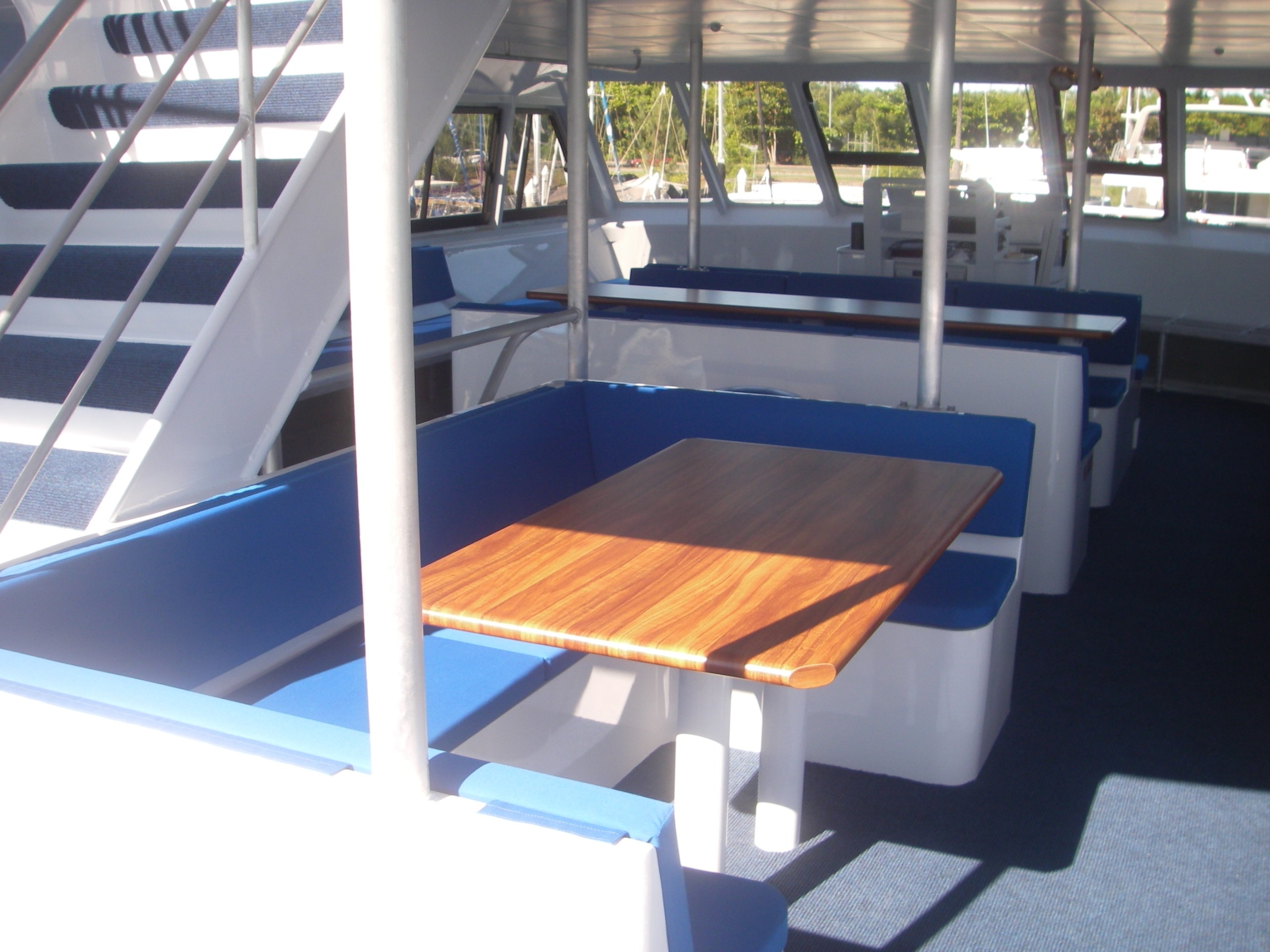

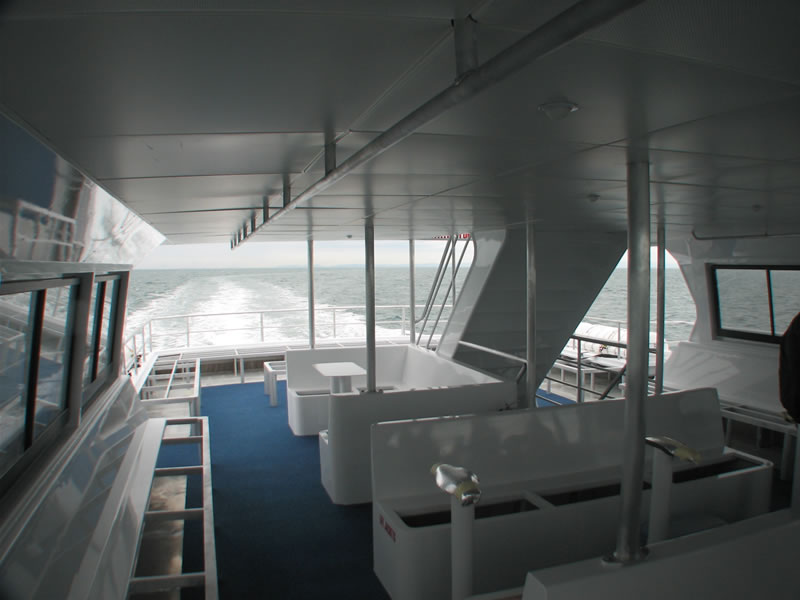

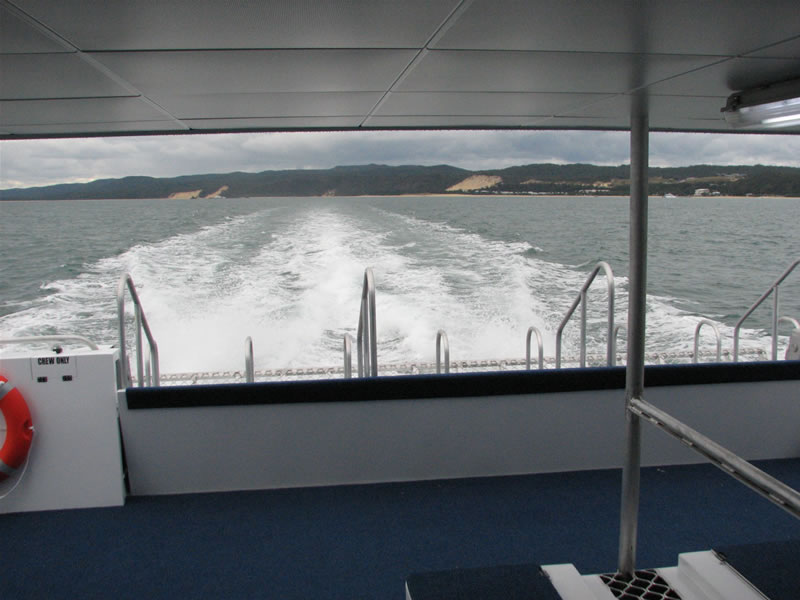

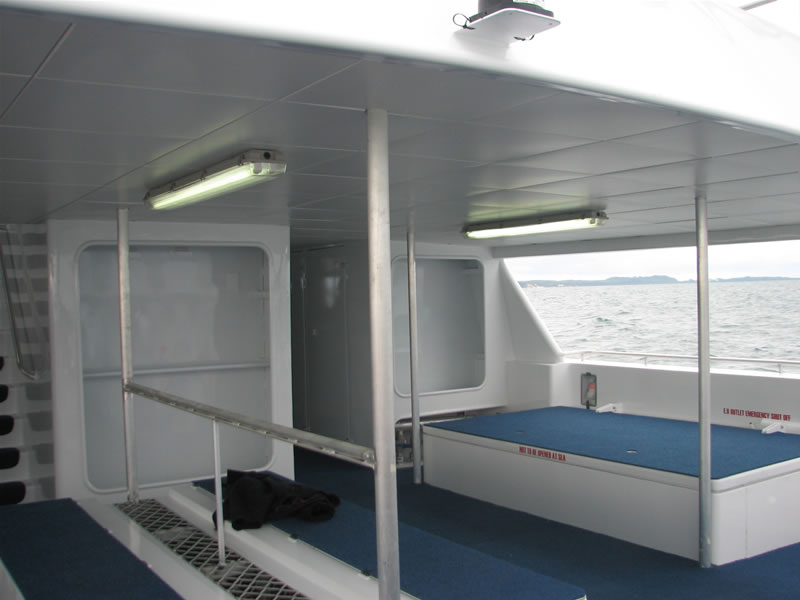

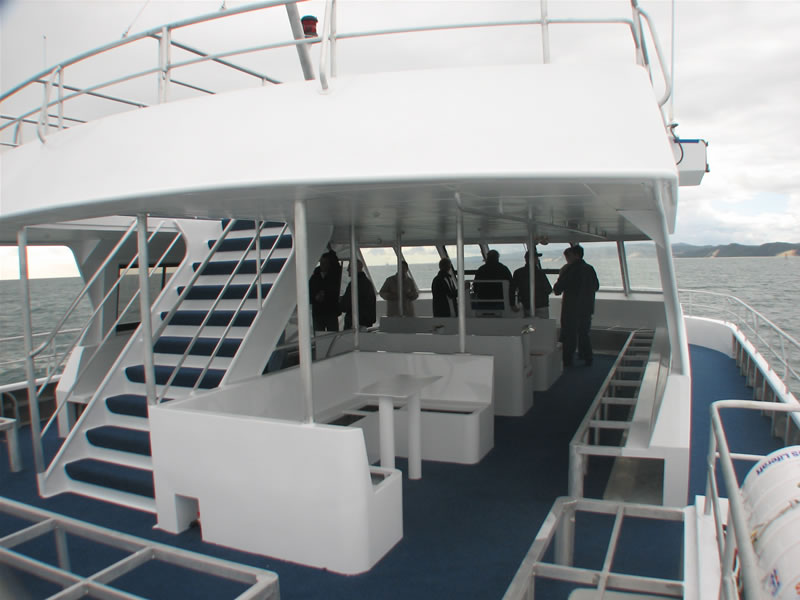

Rear Cockpit

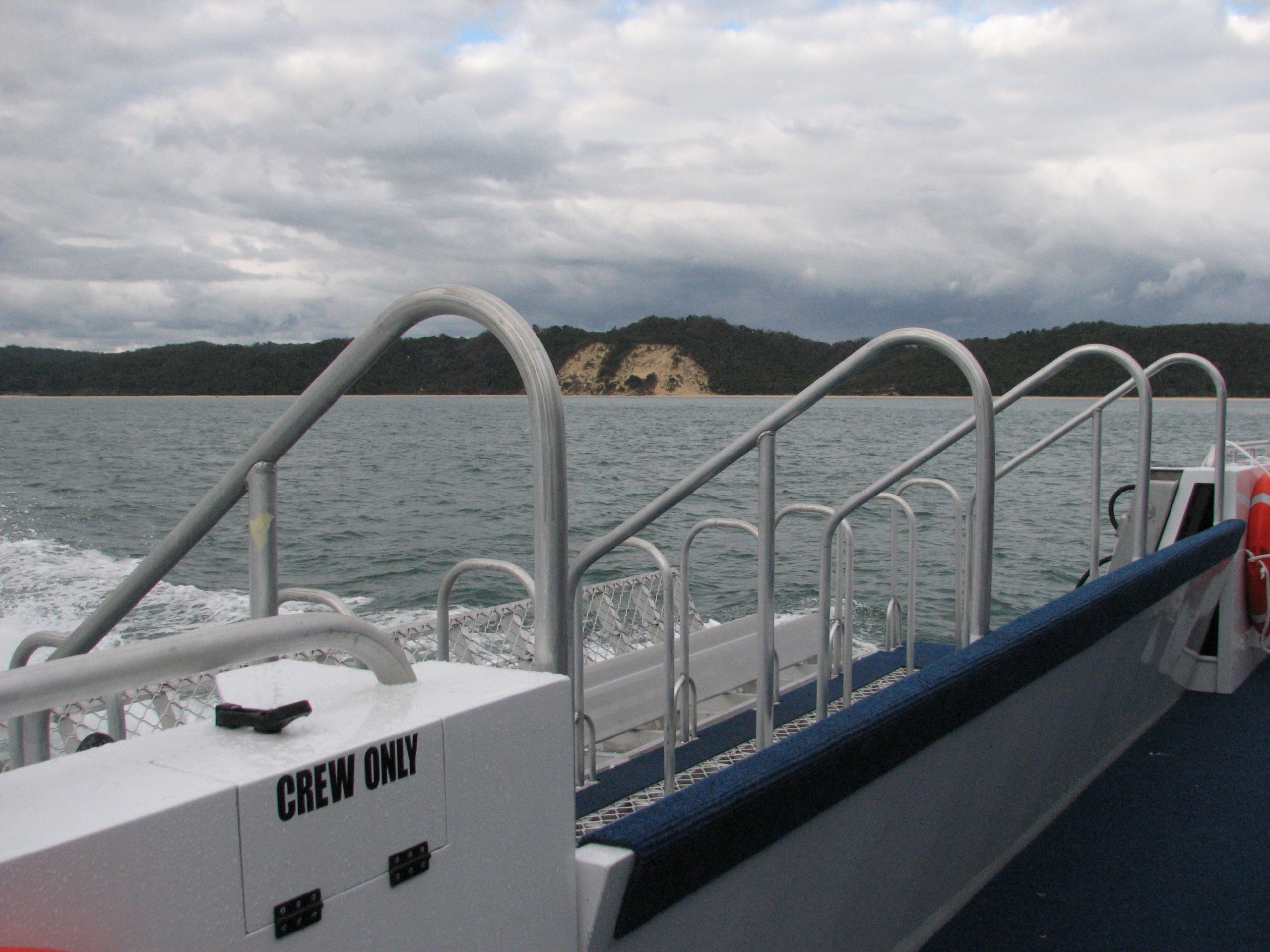

Rear Dive, Load, Dinghy Platform

Click on the pictures right to expand.

Specifications

Name of Vessel: ECLIPSE

Type of Vessel: ALUMINIUM DAY DIVE CATAMARAN

In Survey to: USL CLASS 1C

Home Port: PORT DOUGLAS

Owner: CALYPOS REEF CHARTERS P/L

Owner Contact Phone:  0413388445

Operator CALYPOS REEF CHARTERS P/L

Designer: PAUL BIRGAN  CMCS

CAD Software: MAXSURF

Builder: NEW WAVE CATAMARANS P/L

Hull Construction Material: ALUMINIUM

Superstructure Construction Material: ALUMINIUM

Deck Construction Material: ALUMINIUM

Length Overall: 23.5M

Length Waterline: 22.62

Length bp.: 23.10

Beam: 7.50

Draught: 1.80

Depth: 1.75M

Displacement:   58 T                                                (full load)

Tonnage/s:                    GRT                  NRT                  DWT

Main Engine/s: MTU DETROIT SERIES 60 14L 650 H.P.

(no/make/model/power)

Gearbox/s: TWIN DISC MG 5114A

Propulsion: ROGERS AND LOUGH

Maximum Speed:  27 KNOTS                         (lightship)

Cruising Speed: 23-24 KNOTS                         (full load)

Bollard Pull:

Auxiliary Engine/s: ZENITH 40 KVA

(no/make/model/power)

Generator/s: ZENITH 40 KVA

Shaft Auxiliary Generator/s:

Side Thruster/s:

Steering System: TMQ HYDRAULIC

Hydraulic Equipment: GATEWAY HYDRAULICS

Hydraulic Equipment Installed By: NWC/GATEWAY HYDRAULICS

Electronics Supplied By: TMQ

Electronics Installed By: NWC

Electrical Installation: IPK ELECTRICAL

Radar/s:

Depth Sounder/s:

Radio/s:

Sonar:

Satcom:

Autopilot:

Compass/es:

Weatherfax:

GMDSS:

GPS:

Plotters:

Sound System:

Video System:

Other Electronics:

Integrated Electronics By:

Winches: MUIR 3500

Capstan/Windlass: MUIR 3500

Cranes:

Deck Equipment:

Other Equipment Installed:

Alarm System/s:

Paints/Coatings: Protec

Windows: ALFAB

Seating: NWC

Flooring/Deck Surface Finishes: CARPET

Interior Fitout/Furnishings: New Wave Catamarans

Lights:

Rope/Chain:

Anchors: 2 X 75 KG

Armament/Weapons:

Safety Equipment: SAM ALLAN WHOLESALERS

Liferaft/s: 4 X 25 MAN  RFD BRISBANE

Lifeboat/s:

Rescue Boat/s:

Hold Capacity:

Deck Cargo Capacity:

Water Ballast:

Fuel Capacity: 2X3800

Fuel Consumption: 75 LTR PER SIDE @70% MCR

Freshwater Capacity: 2 X 1000 LTR

Crew: 5

Passengers: 95 DIVERS

Range: 2000 KM

Vehicles:

Type of Fishing Envisaged:

Operational Area: PORT DOUGLAS/  G.B. REEF

Date of Delivery: June 2006

Remarks: DAY DIVE BOAT WITH 250 PAX SEATING

ONLY TAKE OUT 100 FOR DAY TRIPS, ENOUGH ROOM FOR MOST TO LIE DOWN.

OTHER FEATURES

AIR-COMPRESSOR WITH AIR BANKS FITTED.

AFT' HYDRALIC PLATFORM FITTED WITH HYD

TENDER LIFT ARMS, HYD' TRIM TABS.
