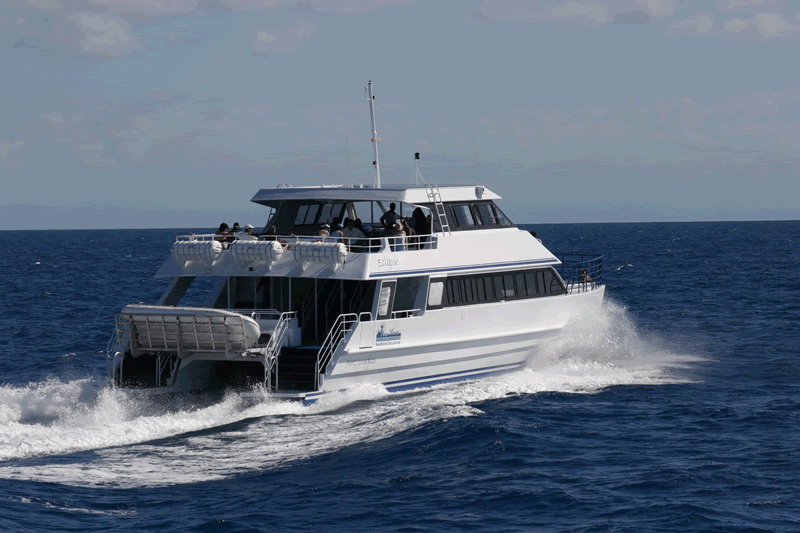

Name of Vessel: ECLIPSE

Type of Vessel: ALUMINIUM DAY DIVE CATAMARAN

In Survey to: USL CLASS 1C

Home Port: PORT DOUGLAS

Owner: CALYPOS REEF CHARTERS P/L

Owner Contact Phone:  0413388445

Operator CALYPOS REEF CHARTERS P/L

Designer: PAUL BIRGAN  CMCS

CAD Software: MAXSURF

Builder: NEW WAVE CATAMARANS P/L

Hull Construction Material: ALUMINIUM

Superstructure Construction Material: ALUMINIUM

Deck Construction Material: ALUMINIUM

Length Overall: 23.5M

Length Waterline: 22.62

Length bp.: 23.10

Beam: 7.50

Draught: 1.80

Depth: 1.75M

Displacement:   48 T                                                (full load)

Tonnage/s:                    GRT                  NRT                  DWT

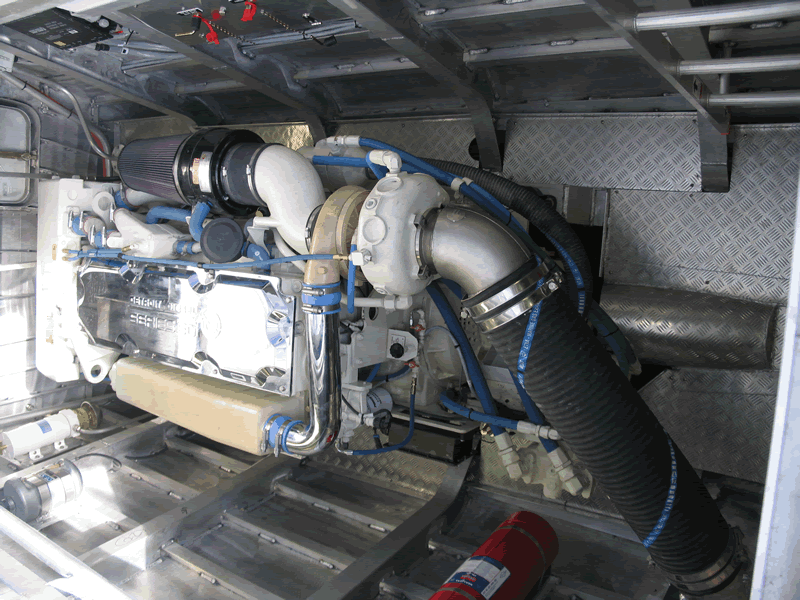

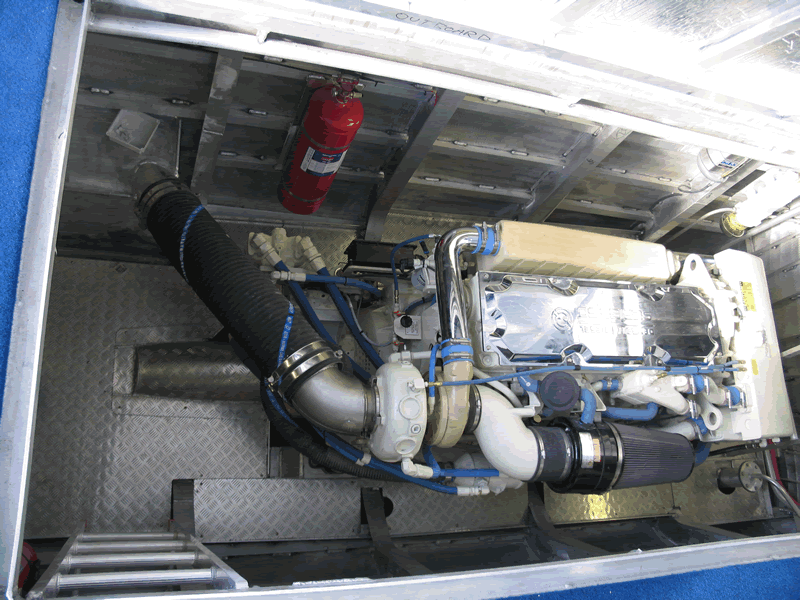

Main Engine/s: MTU DETROIT SERIES 60 14L 650 H.P.

(no/make/model/power)

Gearbox/s: TWIN DISC MG 5114A

Propulsion: ROGERS AND LOUGH

Maximum Speed:  27 KNOTS                         (lightship)

Cruising Speed: 23-24 KNOTS                         (full load)

Bollard Pull:

Auxiliary Engine/s: ZENITH 40 KVA

(no/make/model/power)

Generator/s: ZENITH 40 KVA

Shaft Auxiliary Generator/s:

Side Thruster/s:

Steering System: TMQ HYDRAULIC

Hydraulic Equipment: GATEWAY HYDRAULICS

Hydraulic Equipment Installed By: NWC/GATEWAY HYDRAULICS

Electronics Supplied By: TMQ

Electronics Installed By: NWC

Electrical Installation: IPK ELECTRICAL

Radar/s:

Depth Sounder/s:

Radio/s:

Sonar:

Satcom:

Autopilot:

Compass/es:

Weatherfax:

GMDSS:

GPS:

Plotters:

Sound System:

Video System:

Other Electronics:

Integrated Electronics By:

Winches: MUIR 3500

Capstan/Windlass: MUIR 3500

Cranes:

Deck Equipment:

Other Equipment Installed:

Alarm System/s:

Paints/Coatings: JOTAN

Windows: ALFAB

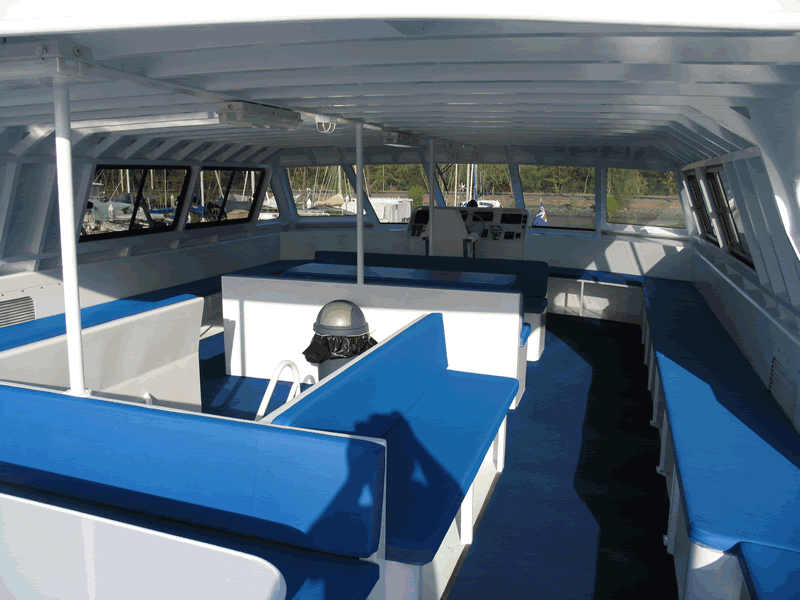

Seating: NWC

Flooring/Deck Surface Finishes: CARPET

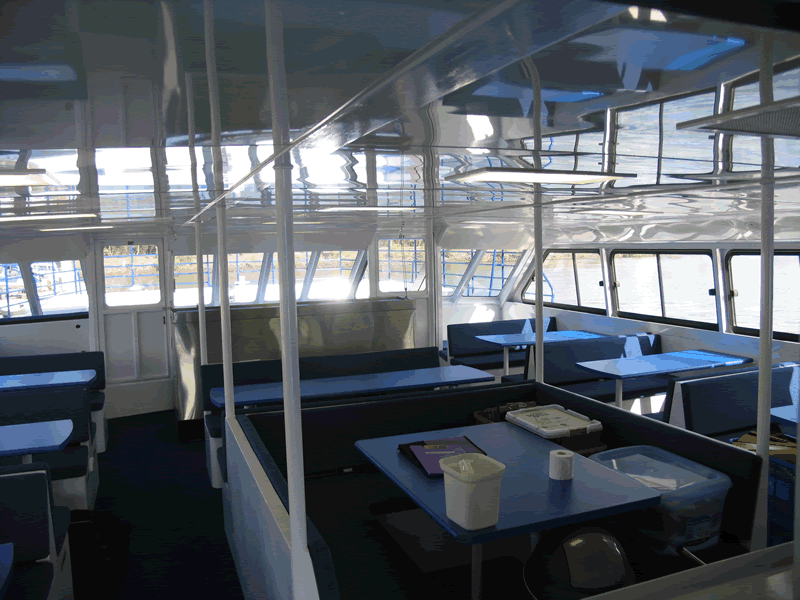

Interior Fitout/Furnishings: MILLCRAFT MARINE

Lights:

Rope/Chain:

Anchors: 2 X 75 KG

Armament/Weapons:

Safety Equipment: SAM ALLAN WHOLESALERS

Liferaft/s: 4 X 25 MAN  RFD BRISBANE

Lifeboat/s:

Rescue Boat/s:

Hold Capacity:

Deck Cargo Capacity:

Water Ballast:

Fuel Capacity: 2X2600

Fuel Consumption: 130 LTR PER SIDE @100%MCRR

Freshwater Capacity: 2 X 1000 LTR

Crew: 5

Passengers: 95 DIVERS

Range: 600 KM

Vehicles:

Type of Fishing Envisaged:

Operational Area: PORT DOUGLAS/  G.B. REEF

Date of Delivery: LATE AUG 2004

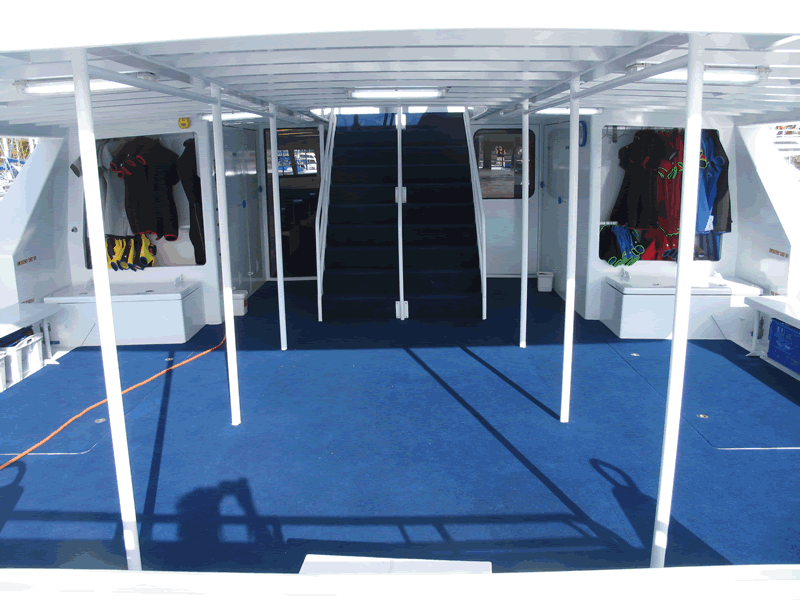

Remarks: DAY DIVE BOAT WITH 210 PAX SEATING

ONLY TAKE OUT 100 FOR DAY TRIPS, ENOUGH ROOM FOR MOST TO LIE DOWN.

OTHER FEATURES

AIR-COMPRESSOR WITH AIR BANKS FITTED.

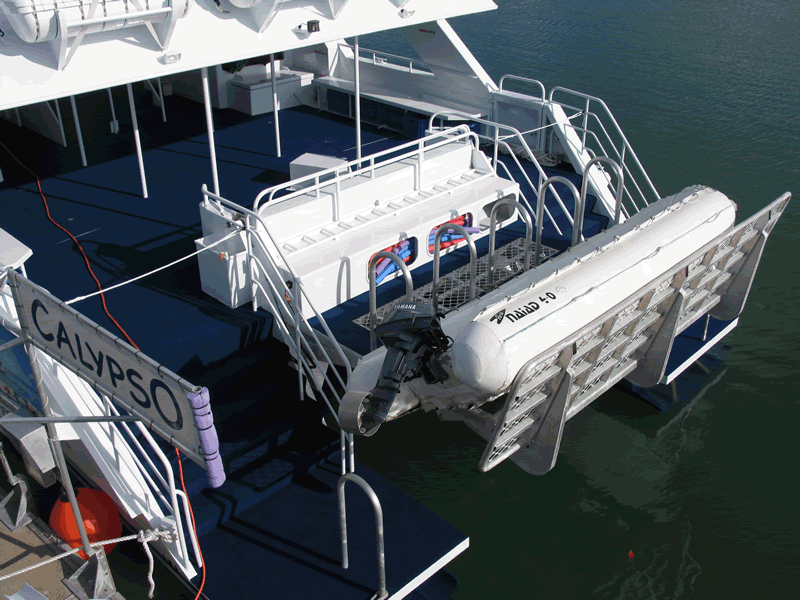

AFT' HYDRALIC PLATFORM FITTED WITH HYD

TENDER LIFT ARMS, HYD' TRIM TABS.

CUSTOM ELECTRIC WINDOWS FOR

FWD' WINDOW IN WHEELHOUSE.
