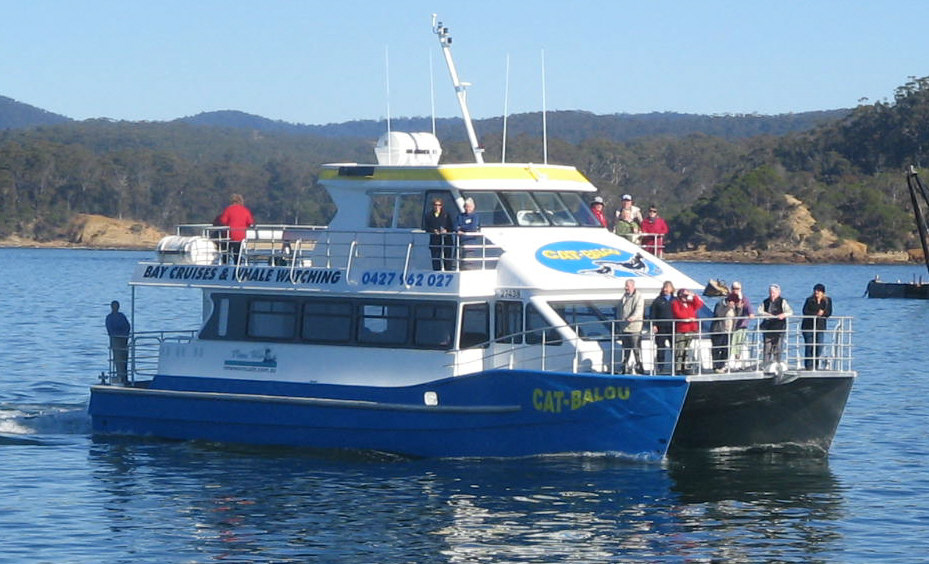

Cat Balou At Work

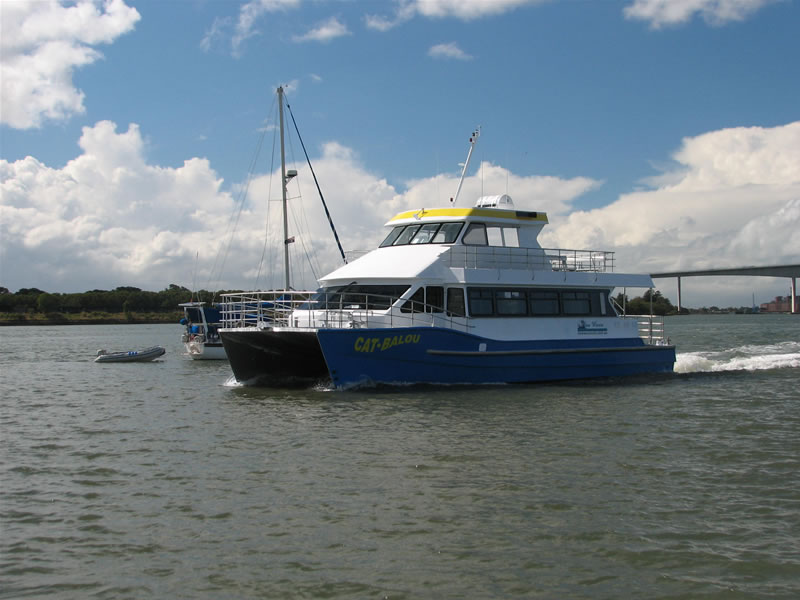

New 16 Meter Whale Watch/Cruise vessel Cat Balou Launched

Graham and Ros have just taken delivery of their new cruise and whale watching boat which will operate out of Eden NSW.

This 16 meter cat is powered by twin 300 hp Cummins achieving a max speed of 20 knots. The simple layout means maximum usability and a versatile vessel.

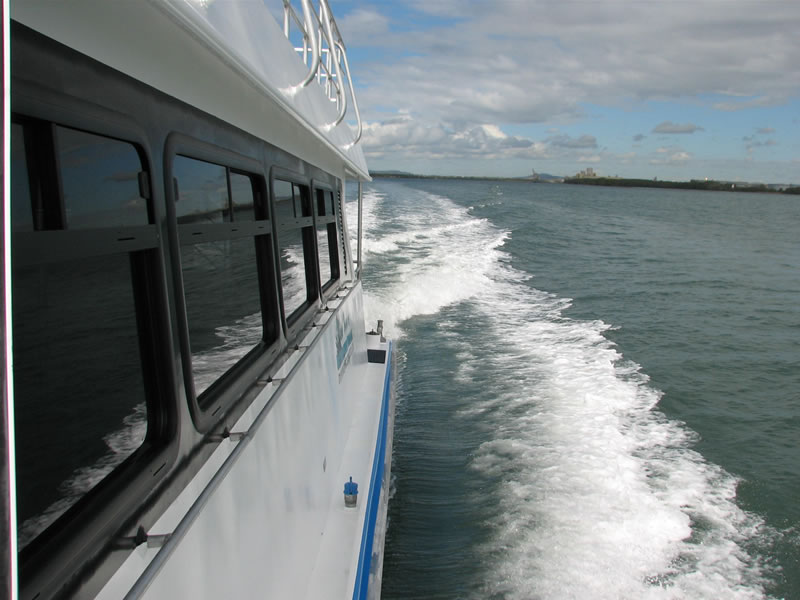

Click on any of the images right to expand the photos.

Click here to see operatorrs web page

Specifications

Name of Vessel: CAT BALOU

Type of Vessel: ALUMINIUM COASTAL PASSENGER CATAMARAN

In Survey to: USL CLASS 1C

Home Port: EDEN

Owner: CAT BALOU Cruises

Owner Contact Phone:
02 64962027

Operator CAT BALOU Cruises

Designer: PAUL BIRGAN  CMCS

CAD Software: MAXSURF

Builder: NEW WAVE CATAMARANS P/L

Hull Construction Material: ALUMINIUM

Superstructure Construction Material: ALUMINIUM

Deck Construction Material: ALUMINIUM

Length Overall: 16.01 M

Length Waterline: 15.02

Length bp.: 15.79 M

Beam: 6.36

Draught: 1.20 M

Depth: 2.03 M

Displacement:  29.5 T                                                (full load)

Tonnage/s: GRT NRT DWT

Main Engine/s: CUMMINGS 6BTA 5.9L 315 H.P.

(no/make/model/power)

Gearbox/s: ZF 80

Propulsion: ROGERS AND LOUGH

Maximum Speed:  20 KNOTS                         (lightship)

Cruising Speed: 17 KNOTS

Bollard Pull:

Auxiliary Engine/s:

(no/make/model/power)

Generator/s:

Shaft Auxiliary Generator/s:

Side Thruster/s:

Steering System: TMQ HYDRAULIC

Hydraulic Equipment: TMQ

Hydraulic Equipment Installed By:TMQ

Electronics Supplied By: TMQ

Electronics Installed By: NWC

Electrical Installation: MACKEY ELECTRICAL

Radar/s:

Depth Sounder/s:

Radio/s:

Sonar:

Satcom:

Autopilot:

Compass/es:

Weatherfax:

GMDSS:

GPS:

Plotters:

Sound System:

Video System:

Other Electronics:

Integrated Electronics By:

Winches: MUIR 3500

Capstan/Windlass: MUIR 3500

Cranes:

Deck Equipment:

Other Equipment Installed:

Alarm System/s:

Paints/Coatings: Jotan

Windows: ALFAB

Seating: NWC

Flooring/Deck Surface Finishes: CARPET

Interior Fitout/Furnishings: New Wave Catamarans

Lights:

Rope/Chain:

Anchors: 2 X 75 KG

Armament/Weapons:

Safety Equipment: SAM ALLAN WHOLESALERS

Liferaft/s: 3 X 25 MAN  RFD BRISBANE

Lifeboat/s:

Rescue Boat/s:

Hold Capacity:

Deck Cargo Capacity:

Water Ballast:

Fuel Capacity: 2 X 1000

Fuel Consumption: 35 LTR Approx PER SIDE @70% MCR

Freshwater Capacity: 1 X 1000 LTR

Crew: 2

Passengers: 73

Range: 450 KM

Vehicles:

Type of Fishing Envisaged:

Operational Area: EDEN

Date of Delivery: June 2006

Remarks:
