Sea Speed Design can redesign and reconfigure these working designs to suit your exact needs.


Note: Most pictures will expand or open another page if you click on them. Use the back button to return to the original page.

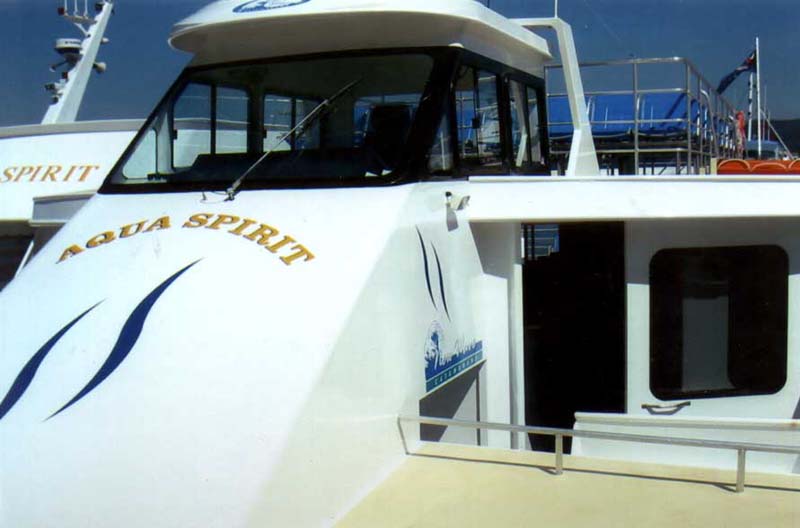

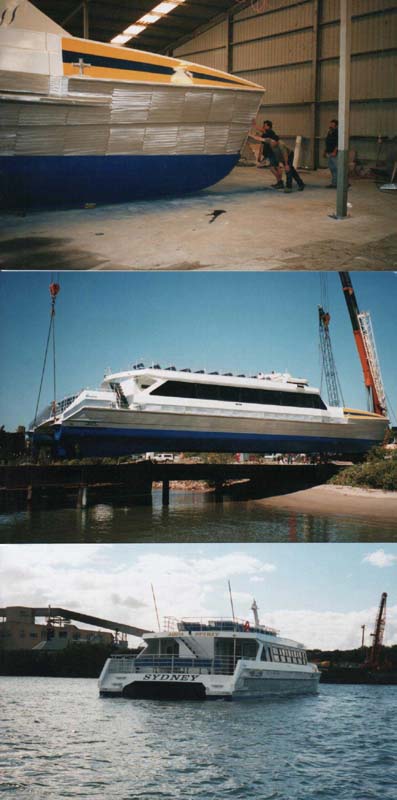

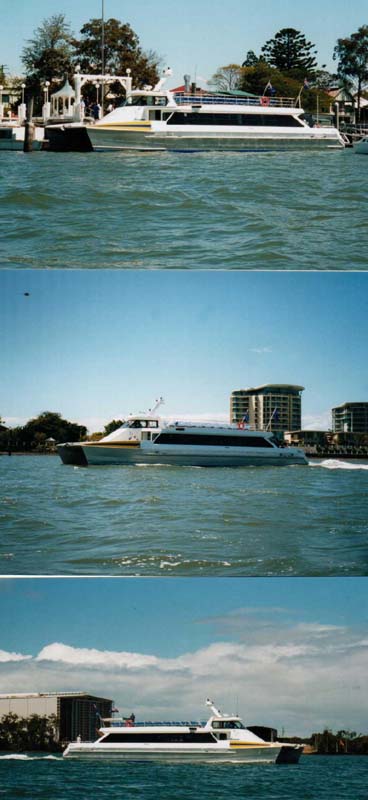

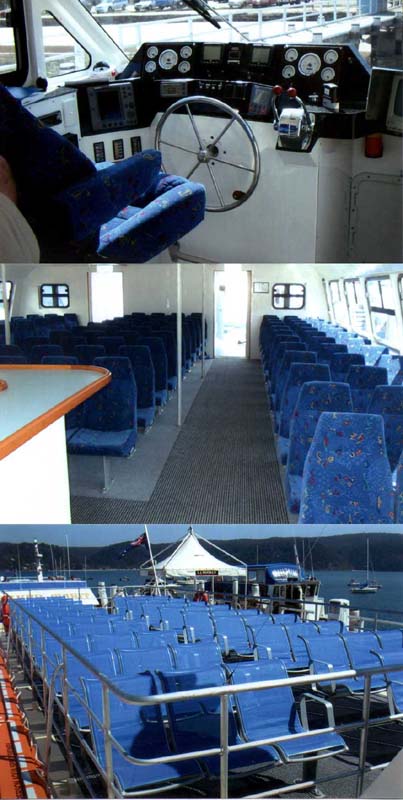

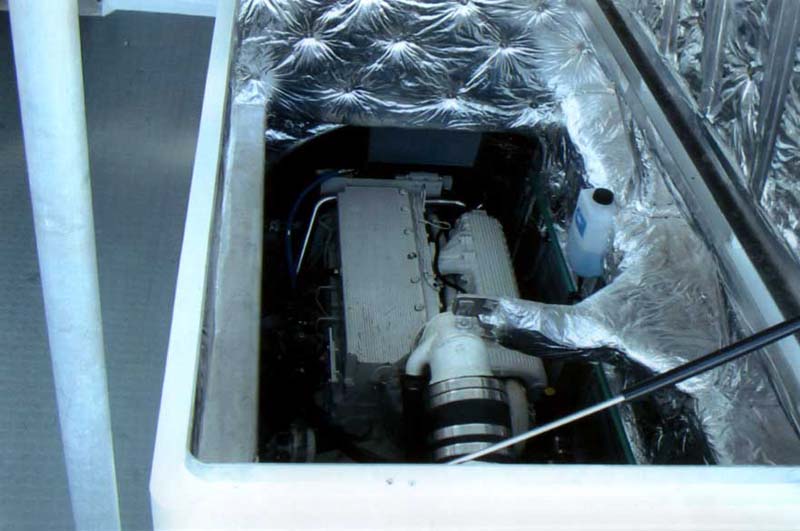

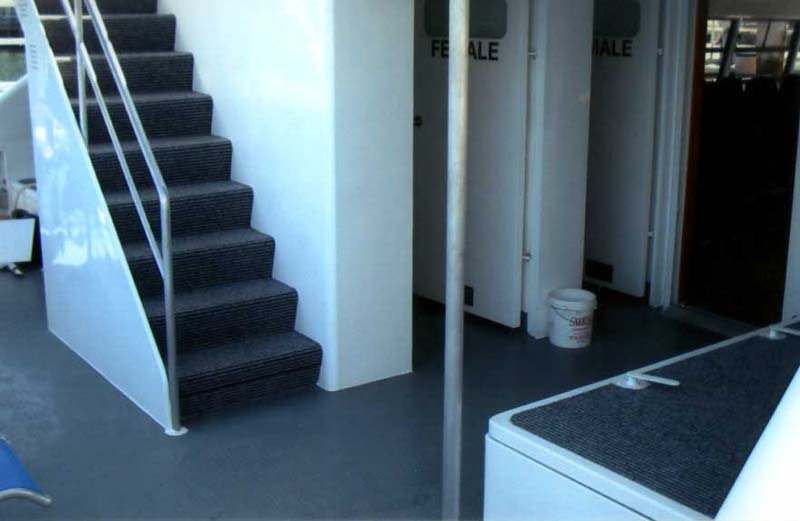

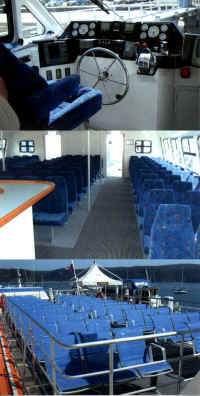

rc24ph8.jpg (251169 bytes) rcthreeshot.jpg (163472 bytes) rc24ph2.jpg (253901 bytes) rcfront1.jpg (39398 bytes) rcrearstairs1.jpg (33468 bytes) rcmotor1.jpg (51817 bytes)

Aqua Spirit

Our 24 meter Aluminium Passenger Catamaran launched in October 2002. This latest design high speed low wash ferry designed by Paul Birgan CMCS has a top speed of 28 knots with 200 passengers and crew in comfort which is outstanding considering she is only powered by twin 580 hp Cummins diesel marine engines.

The high level performance of the catamaran is further highlighted by a fuel economy of 49 ltrs/hr per engine at a 22k to 24k cruise.

Click here to see article on Aqua Spirit in Work Boat world November 2002.

Click here to see vessel specifications

Click on any of the images right to expand the photos


Vessel Type Aluminium Passenger Catamaran
In survey to USL Code 1D and 1E
Home Port  Sydney Australia
Owner Palm Beach Ferry Service
Designer Commercial Marine Consulting Services
Builder New Wave Catamarans
Length Overall 24.92 Meters
Length Waterline 23.83 Meters
Beam 7.76 Meters
Draught 1.40 Meters
Construction Material Aluminium
Main Engines 2 x Cummings QSMII 580 hp each
Gearboxes 2 x ZF322A
Propellers 2 x Rogers and Lough 28" 5 bladed
GPS, Color Plotter and Radar Ratheon
Steering Hydrive Engineering
Winches Muir Winches and Windlasses
Windows Alfab
Seating Transport Seating Technology
Painting/coatings Jotum Paints
Fuel 3000 liters
Maximum Speed 27 knots
Cruising Speed 24 knots
Passengers 192
